SPAIN, Tudela

FACING SYSTEMS – MATERIALS AT 12 METERS IN LENGHT

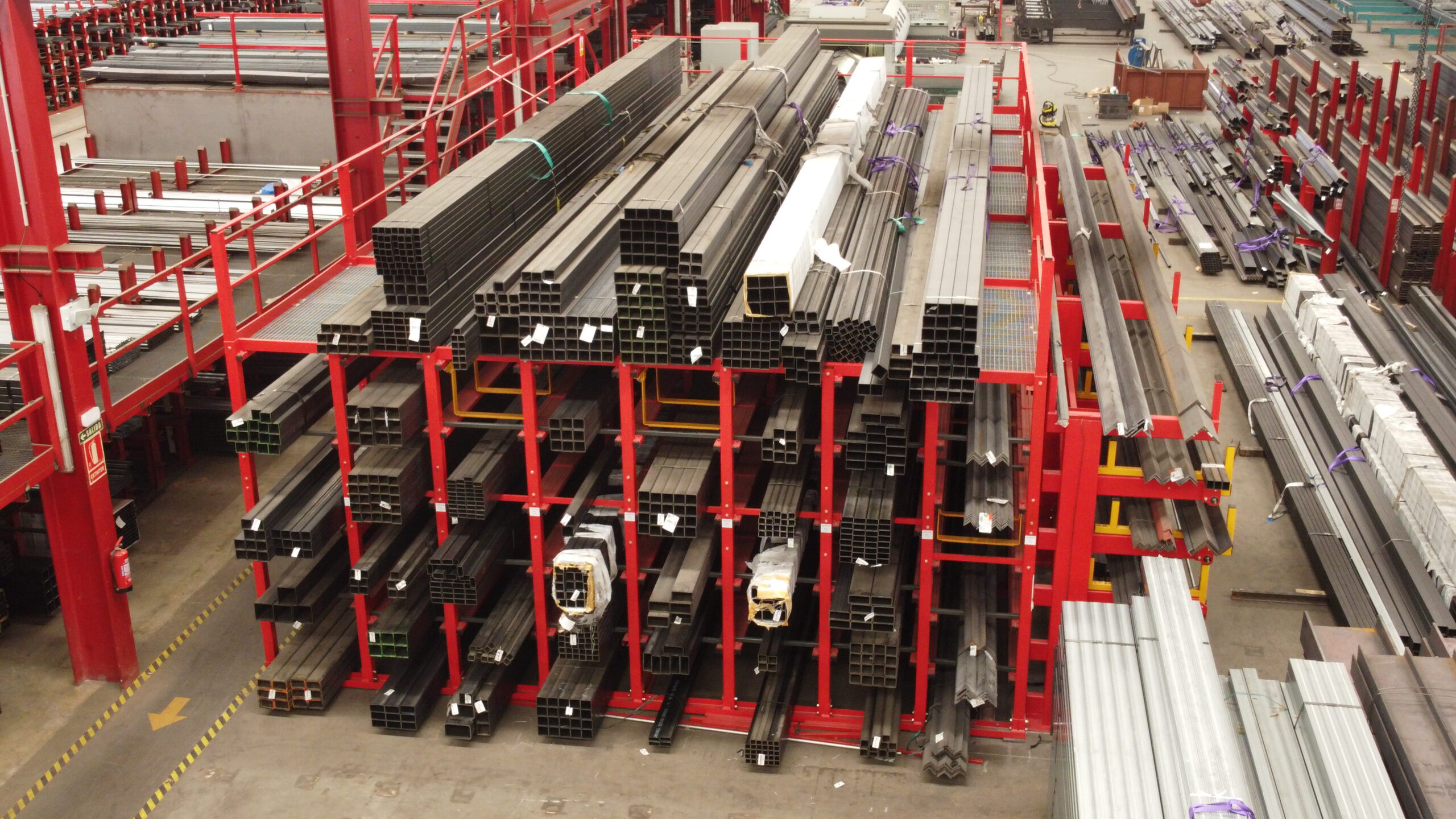

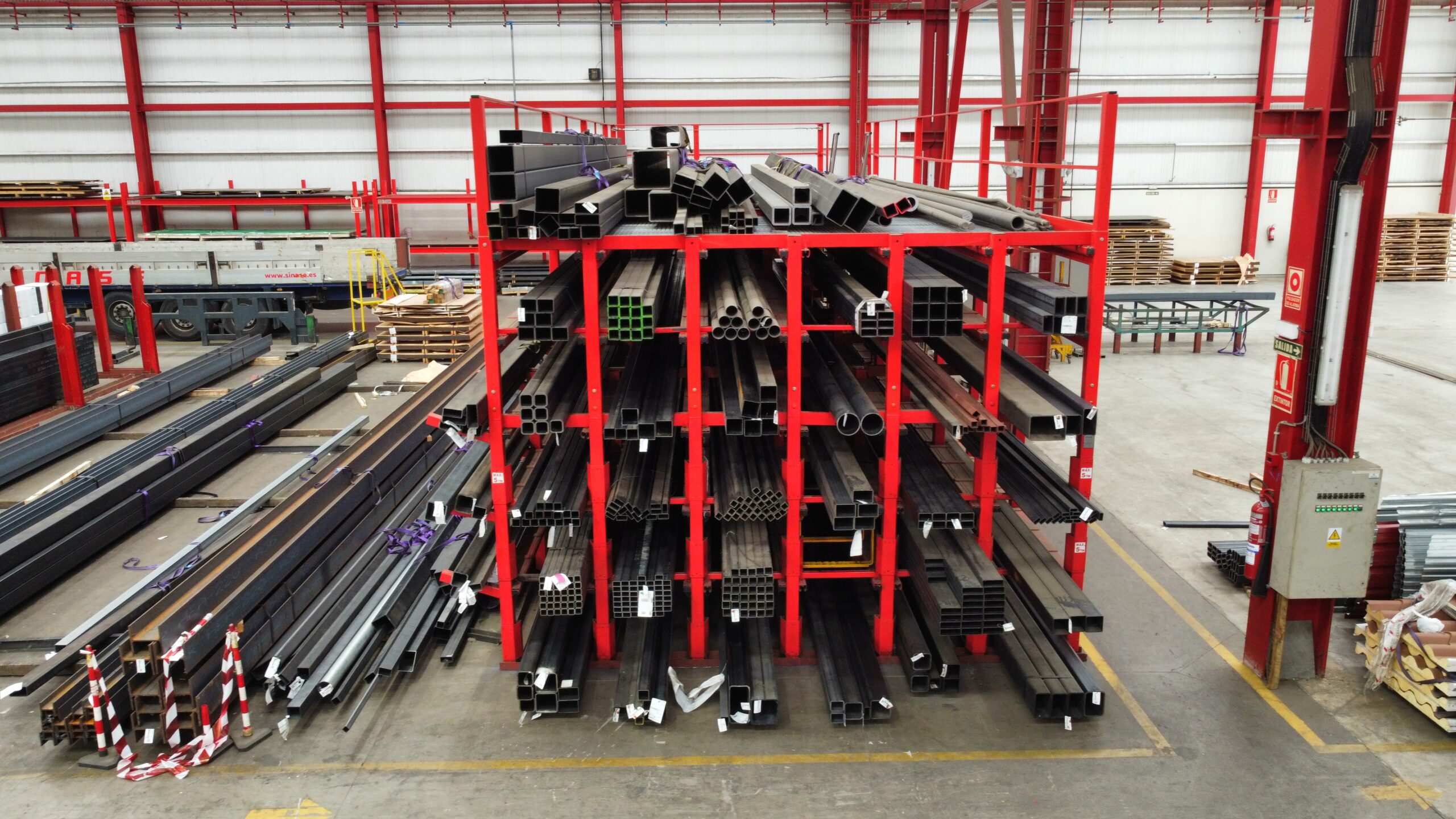

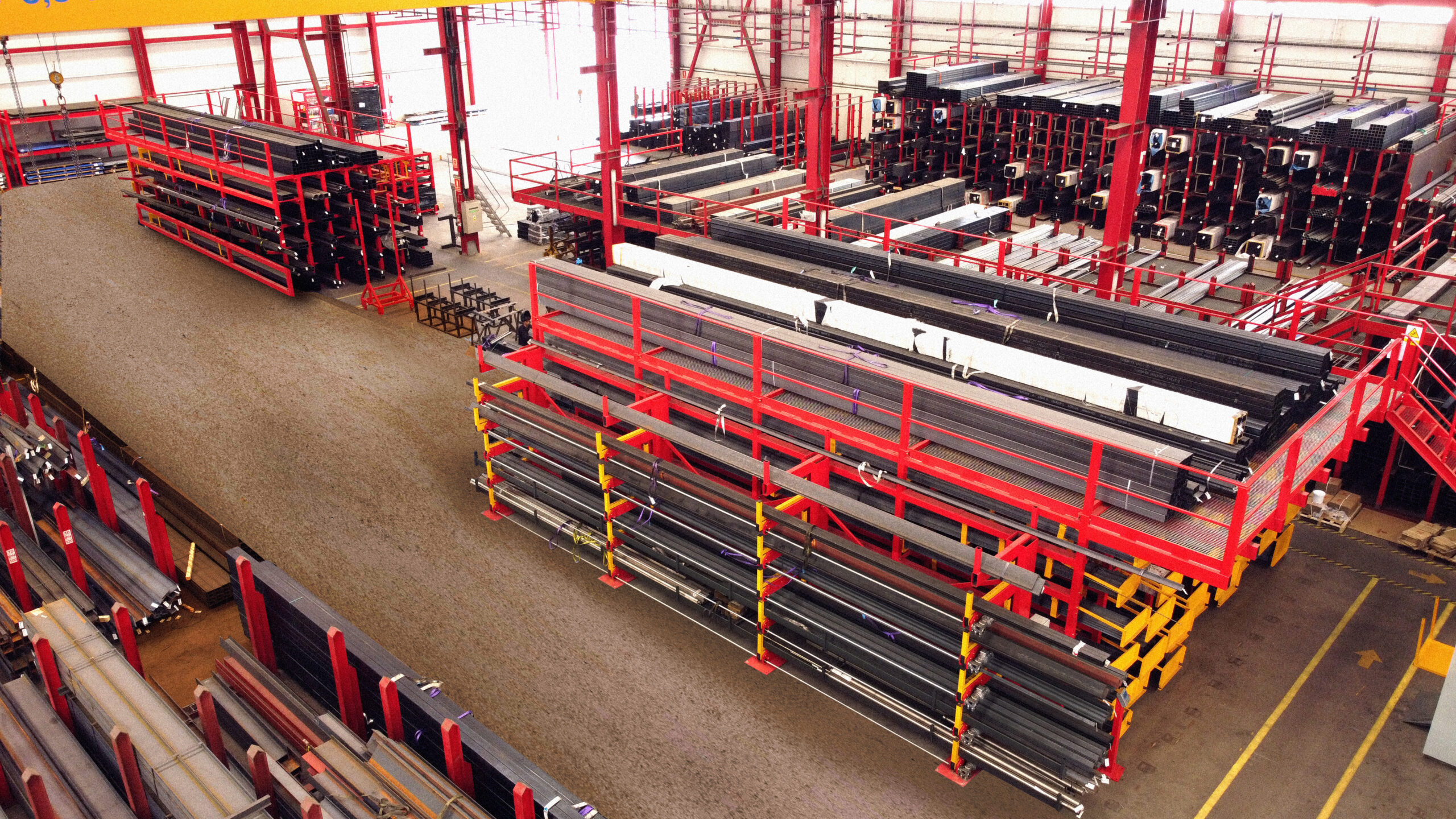

Project where the facing systems, a double storage system for long profiles of 12 meters in length, are placed opposite each other. Both storage systems feature an upper storage area.

  • Number of references: Structure 1 (4 large references +30 medium references + 6 small references + 24 upper warehouse references), Structure 2 (30 medium references + 18 upper warehouse references).
  • System dimensions (length x height x width): Structure 1 (7.2×12.7×3.3) meters, Structure 2 (4.7×12.7×3.3) meters.
  • U-Support dimensions: Large basket (800×715) mm + Medium basket (700×550) mm + Small basket (600×425) mm.
  • Load capacity per U-Support: 6 tons.

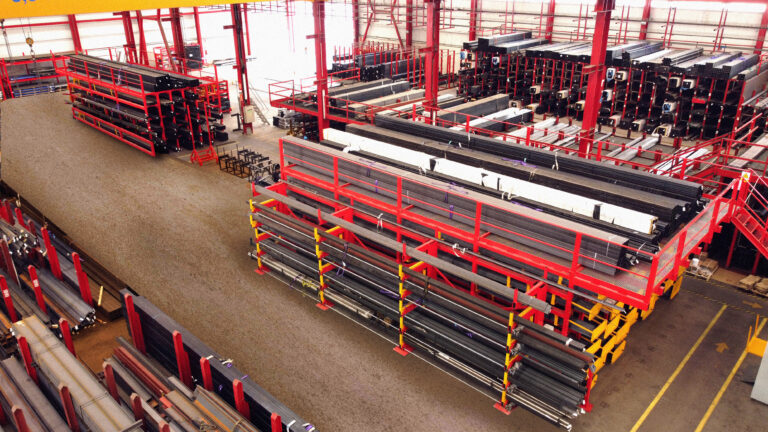

Sistemas_enfrentados_Sinase1
Sistemas_enfrentados_Sinase1

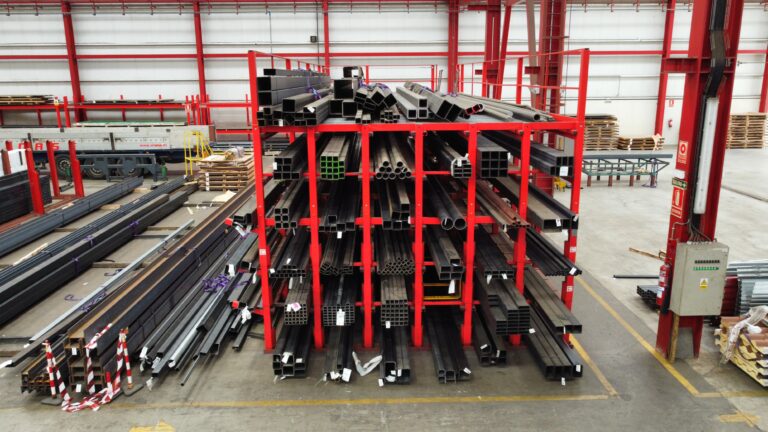

Sistemas_enfrentados_Sinase2
Sistemas_enfrentados_Sinase3

Other proyects

RPA_SYSTEM–EXTRACCIÓNLATERAL1
RPA_SYSTEM–EXTRACCIÓNLATERAL2
RPA_SYSTEM–EXTRACCIÓNLATERAL3
RPA_SYSTEM–EXTRACCIÓNLATERAL4
RPA_SYSTEM–EXTRACCIÓNLATERAL6
RPA_SYSTEM–EXTRACCIÓNLATERAL5

RPA SYSTEM – LATERAL HANDLING

Storage system designed to store small pieces (up to 3m in length) of different types of material in a perfectly organized way and taking up as little space as possible.
View project
Sistema-inoxidable-alumino1
Sistema-inoxidable-alumino2
Sistema-inoxidable-alumino3
Sistema-inoxidable-alumino4

SYSTEM FOR STAINLESS AND ALUMINIUM (SPECIAL PROTECTION)

System specially designed to store stainless steel and aluminum. Certain elements are protected to prevent the material from being contaminated and scratched. To store 6 meter long bars.
View project
Almacenaje_pequeñas_empresas2
Almacenaje_pequeñas_empresas1
Almacenaje_pequeñas_empresas3

STORAGE SYSTEM FOR SMALL COMPANIES

In the case of storage for small companies, this storage system for few references is perfect. It is designed to store profiles of 6 meters in length, with trays for storing cut bars.
View project
Sistema_pocas_referencias3
Sistema_pocas_referencias4
Sistema_pocas_referencias1
Sistema_pocas_referencias2

STORAGE SYSTEM FOR FEW REFERENCES

View project
