Projects

RPF SYSTEM – SYSTEMS TOGETHER

Perfect solution for long bars or delicate material. System composed of 2 facing blocs.

RPF SYSTEM – SYSTEMS DIFFERENT SIZES

Perfect solution for long bars or delicate material. System composed of 2 blocs, one next to the other.

RPC SYSTEM – CANTILEVER AUTOMATIC CRANK HANDLE

Lateral extraction system (Cantilever) whose extraction from the different levels is carried out by means of a crank. To store material 6m long.

RPA SYSTEM – LATERAL HANDLING

Storage system designed to store small pieces (up to 3m in length) of different types of material in a perfectly organized way and taking up as little space as possible.

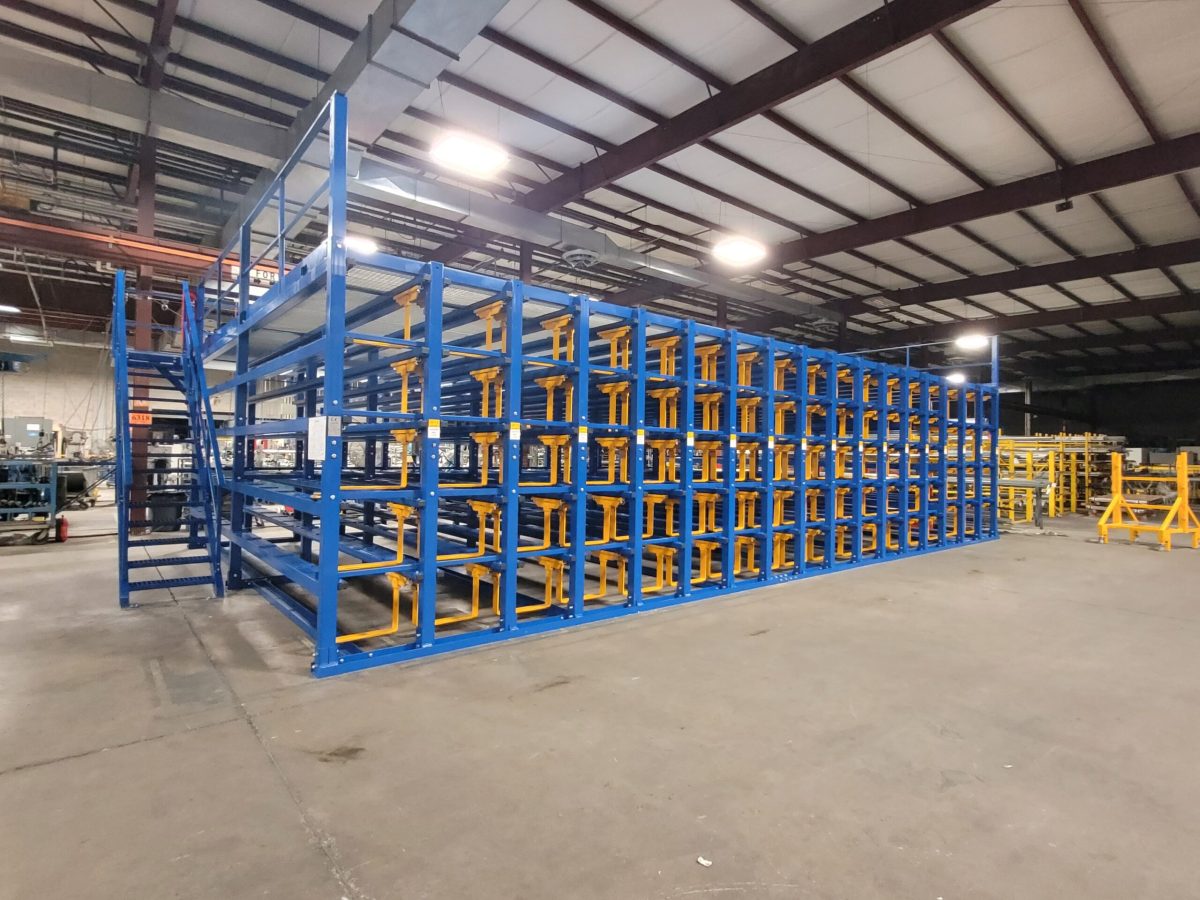

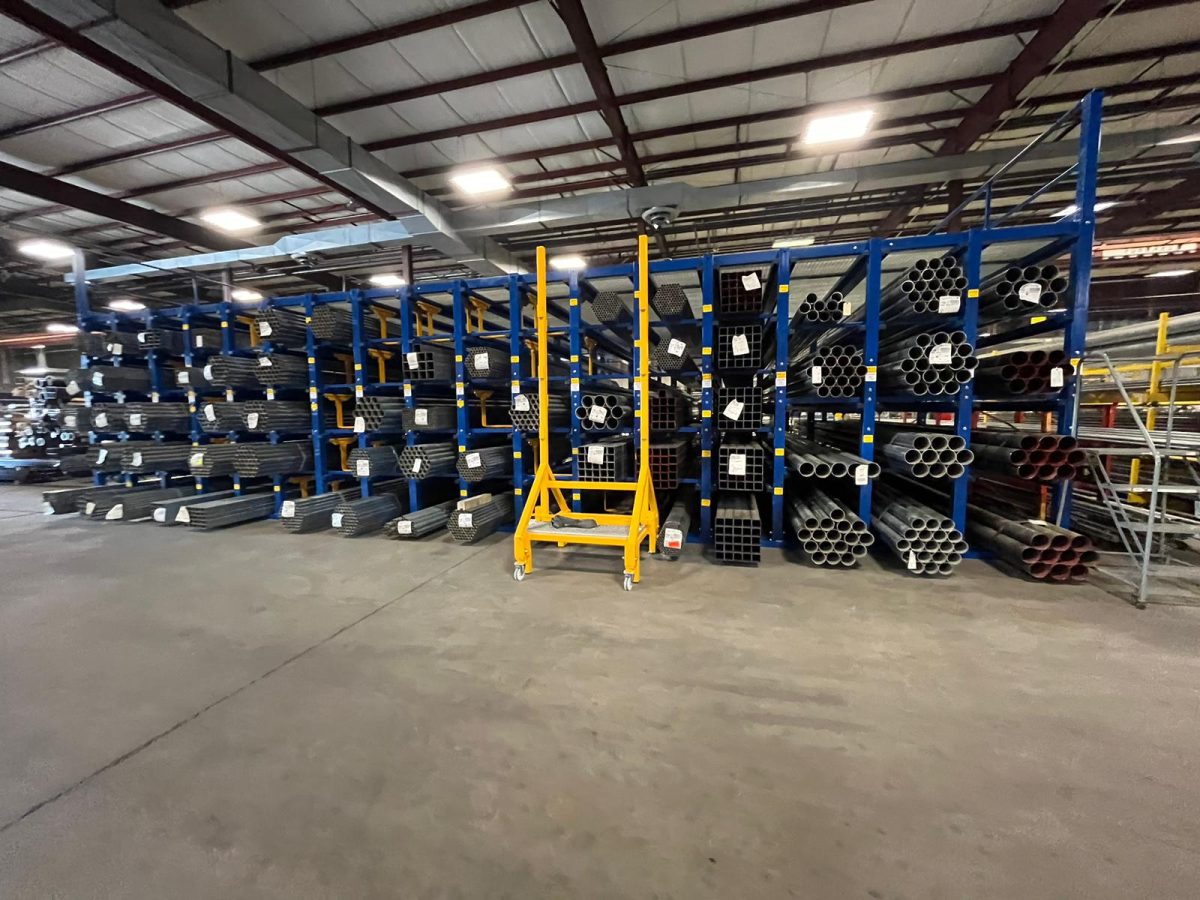

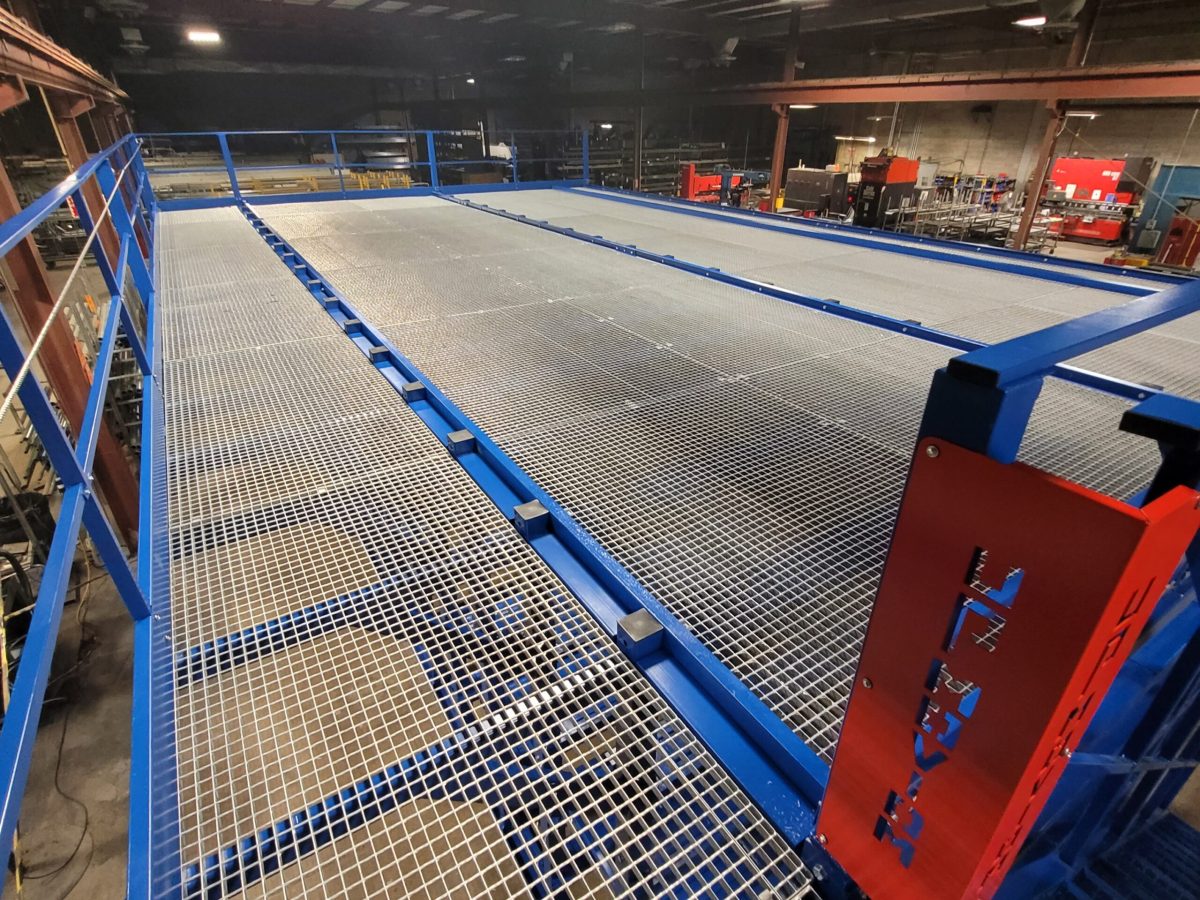

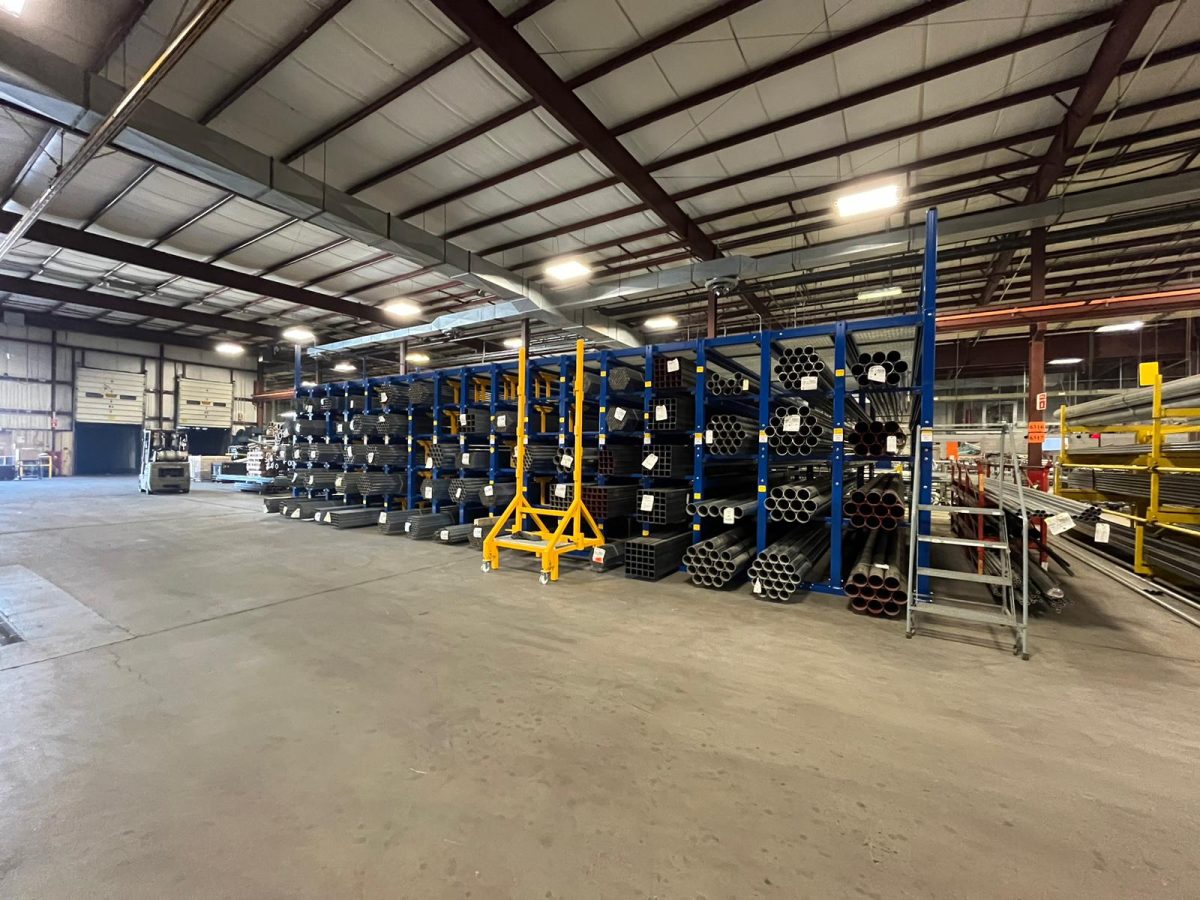

We present our system with American measurements, designed to store 7-meter profiles in Pennsylvania, USA. With dimensions of 13.4m x 8m x 2.9m, this system includes 70 medium references, 12 large references, and 42 complete packages in the upper warehouse.

HANDLING ELECTRIC STACKER

System prepared to introduce and extract 6 metres material by means of an electric stacker.

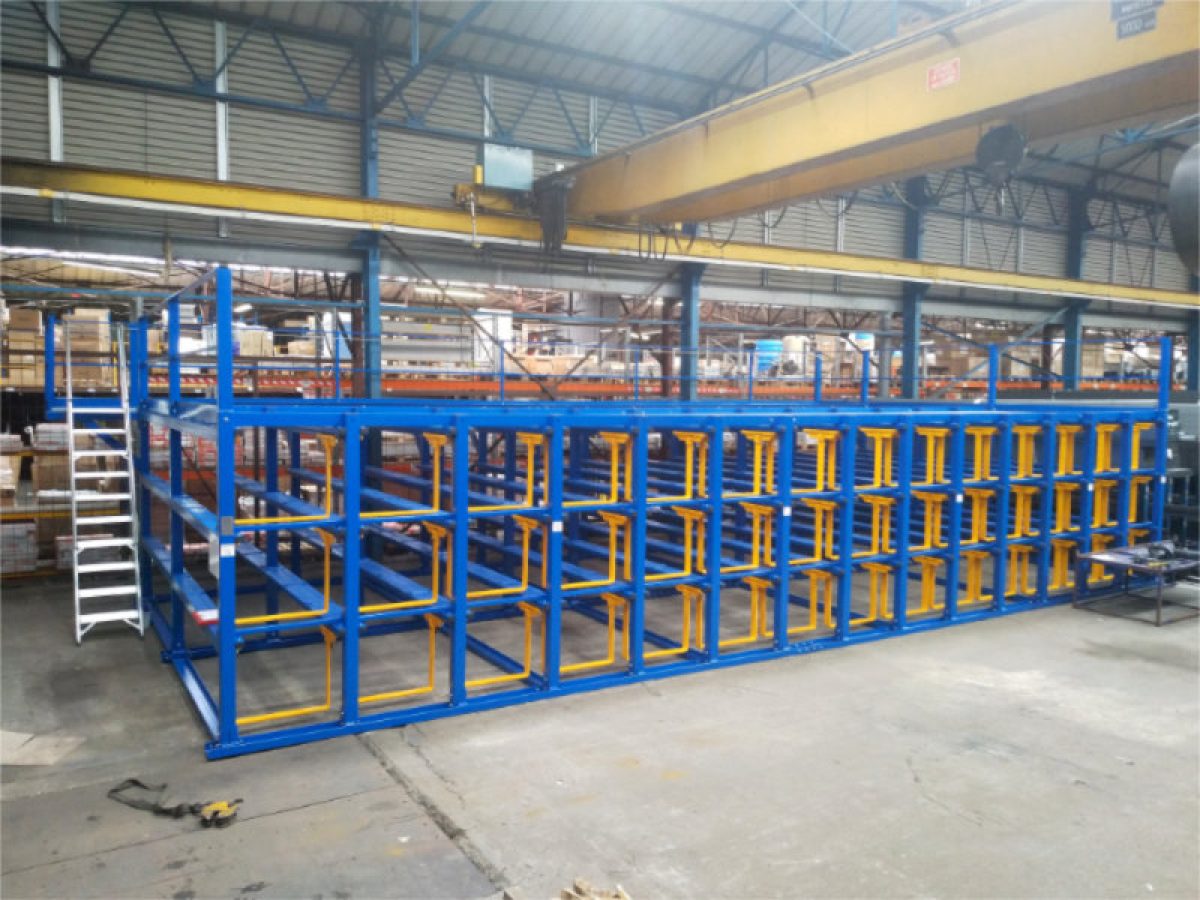

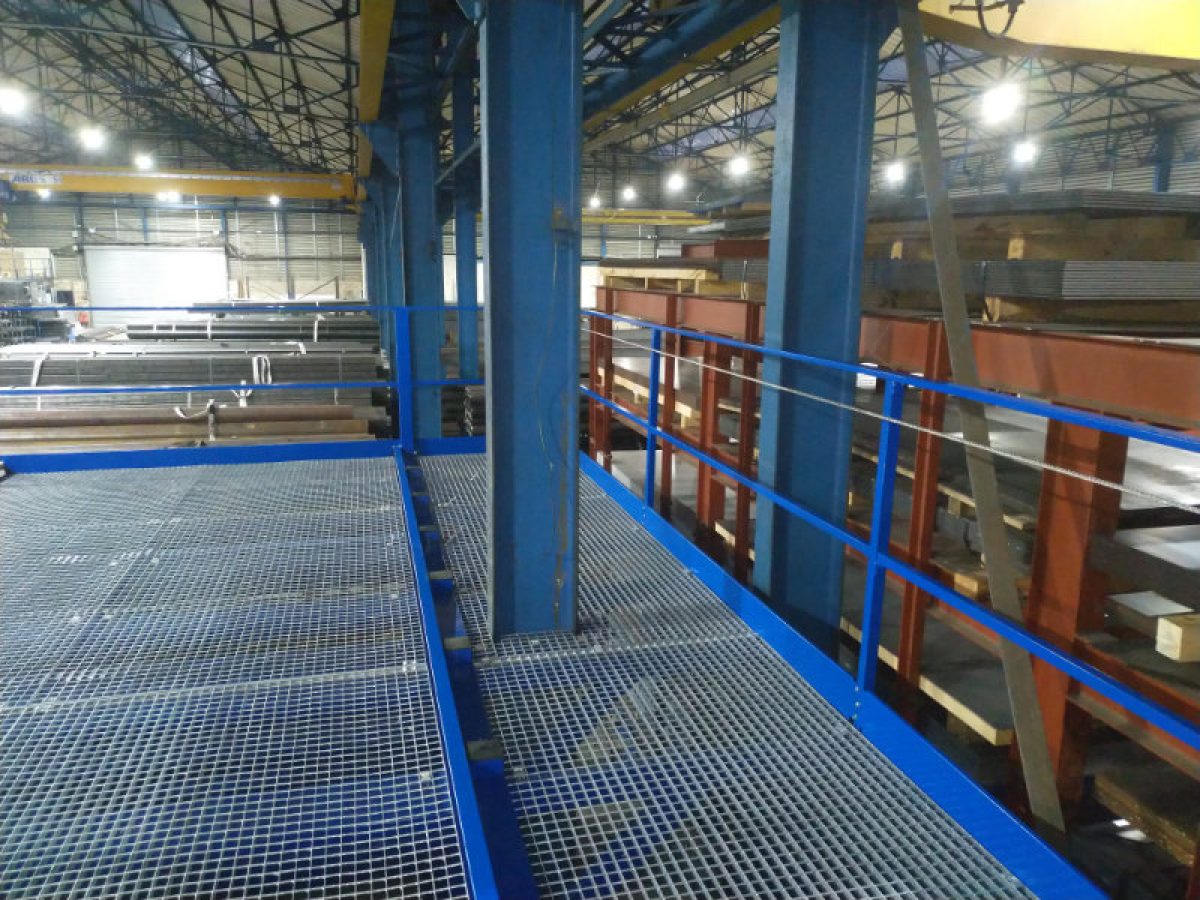

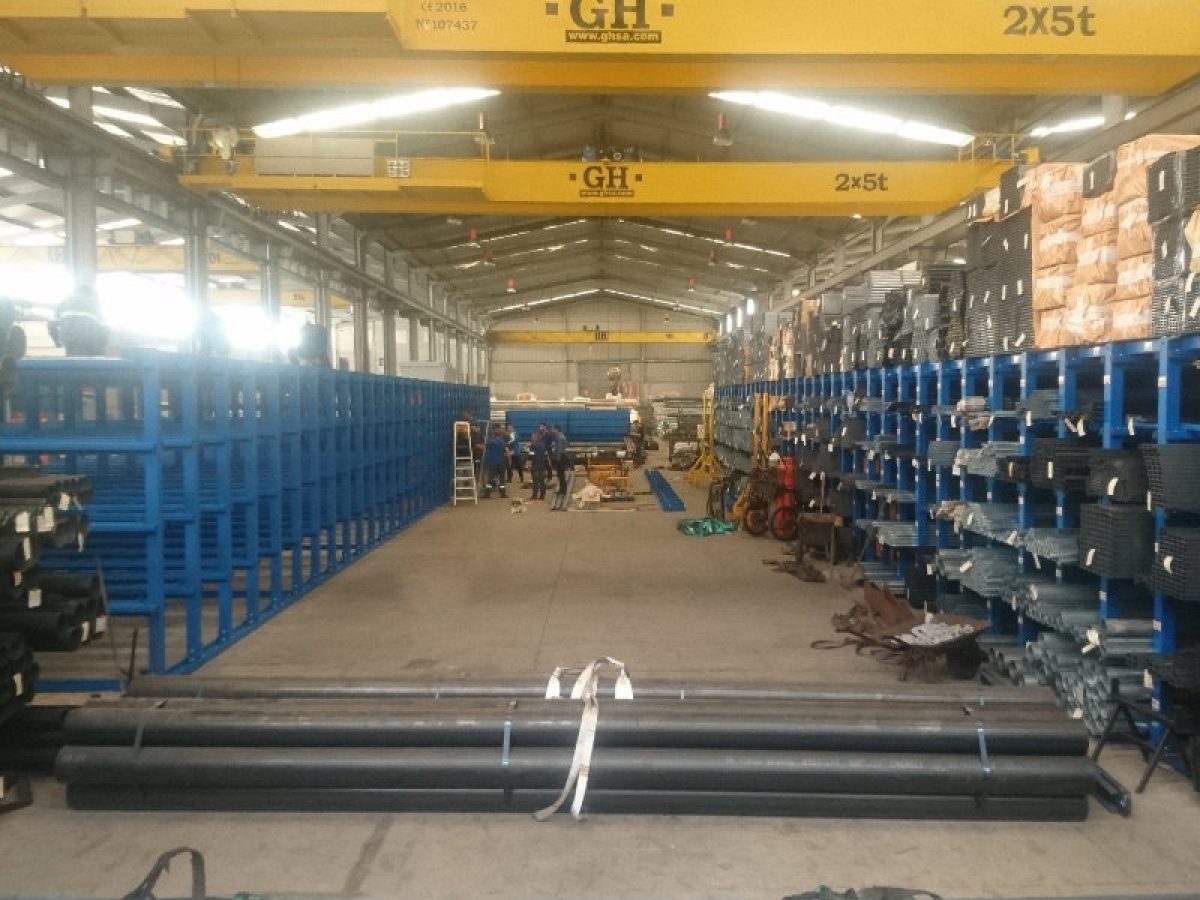

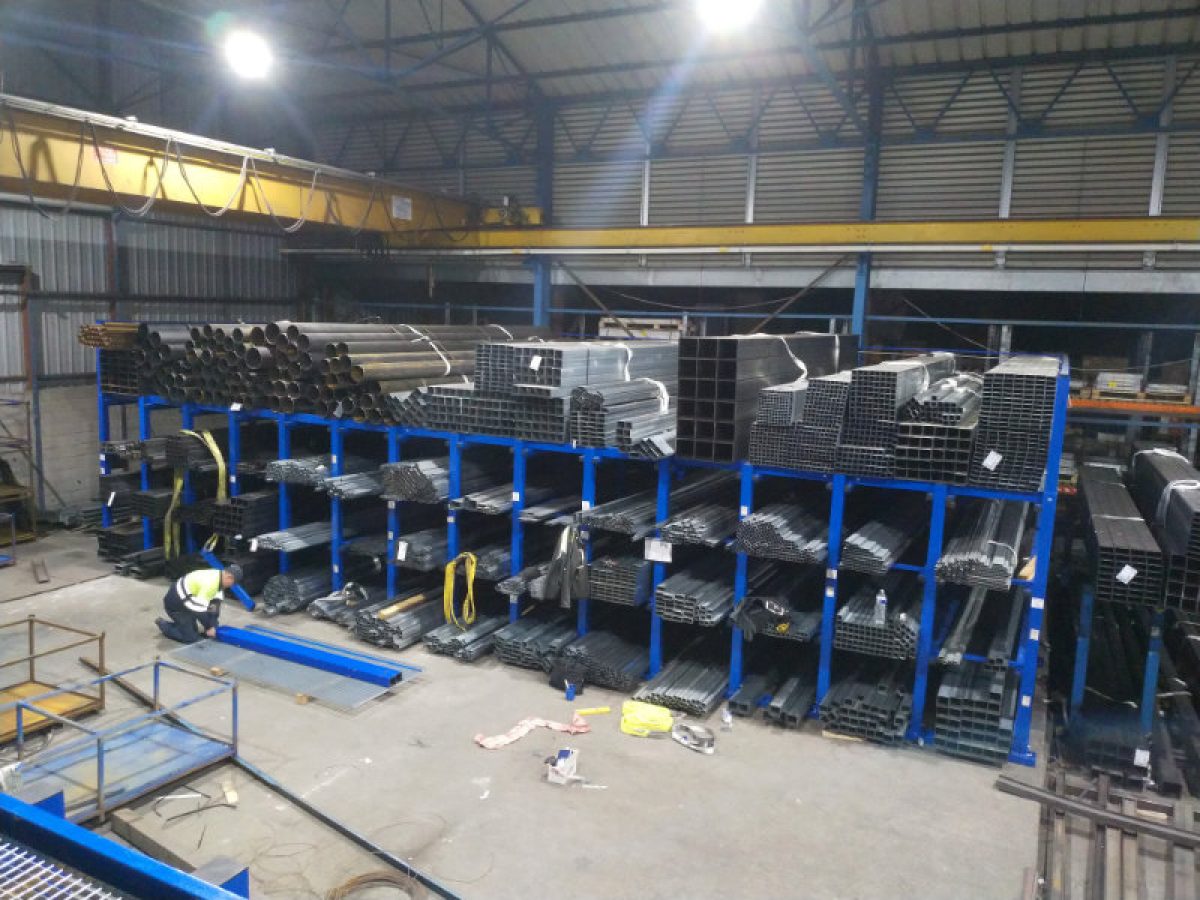

System between columns

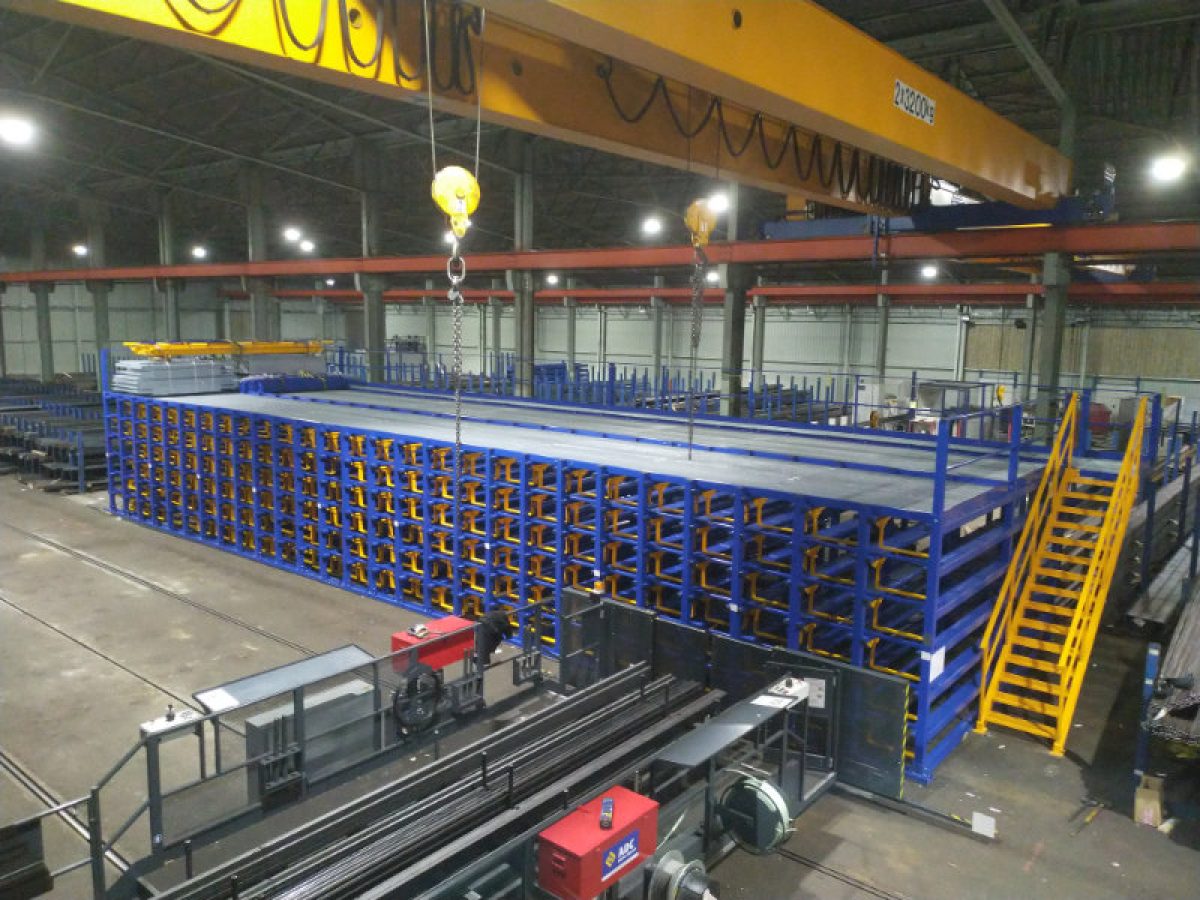

Storage system for long profiles for steel (3 ton), designed to fit between columns and a rear cabinet.

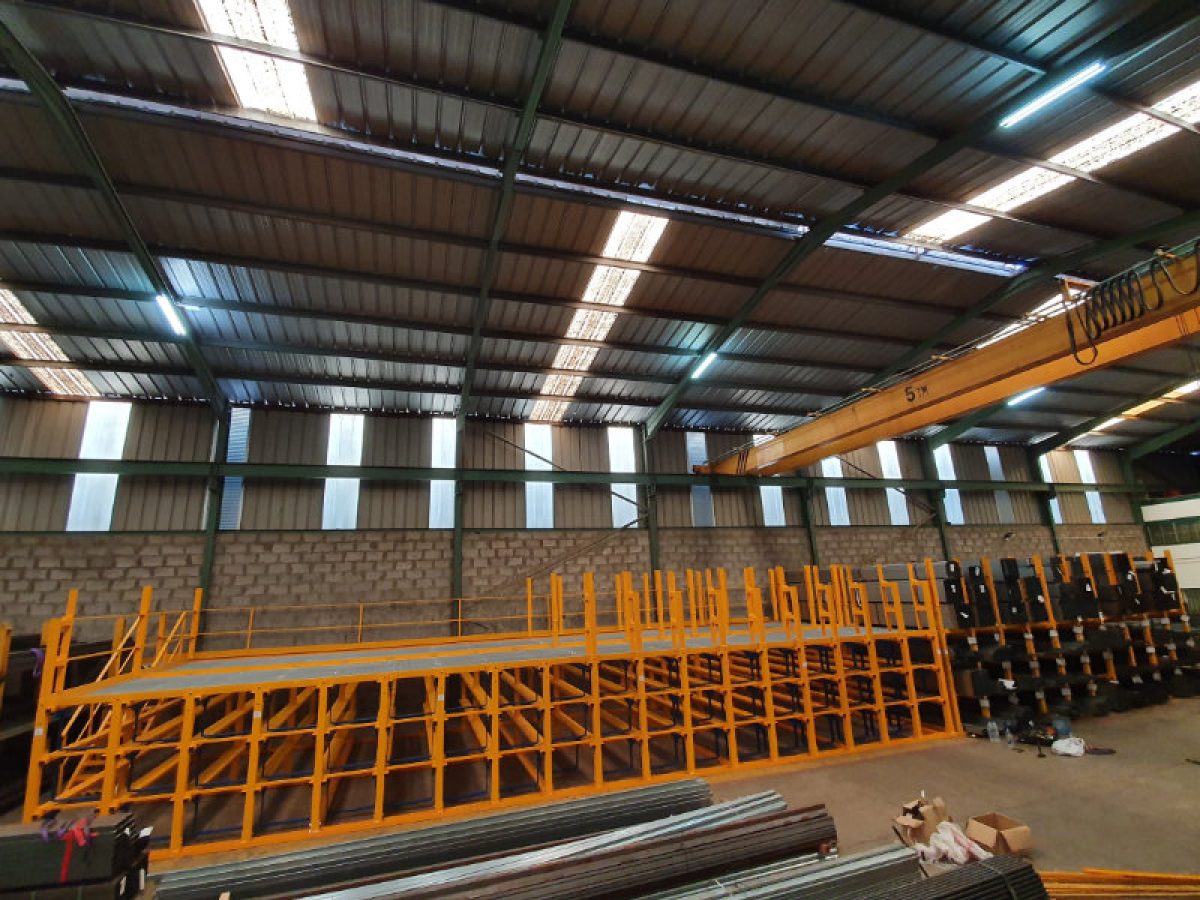

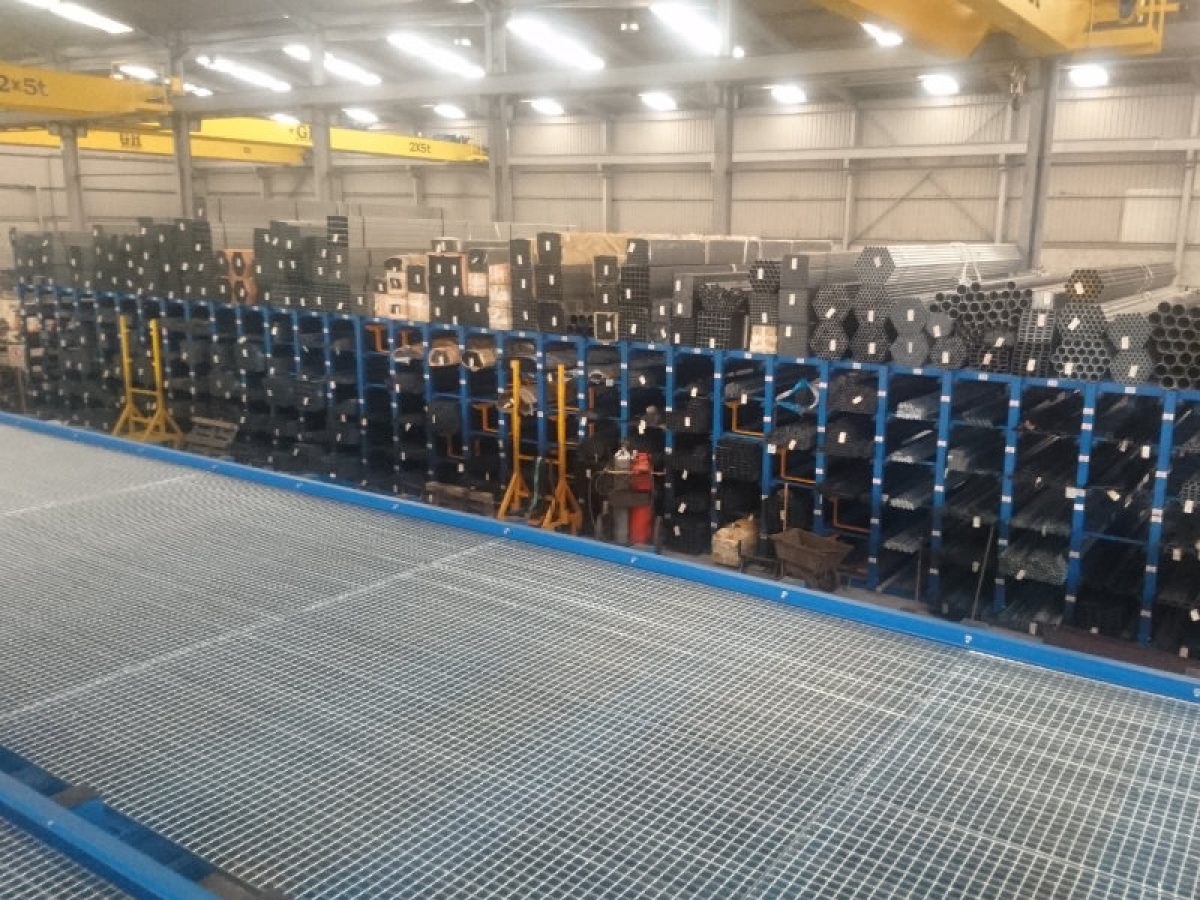

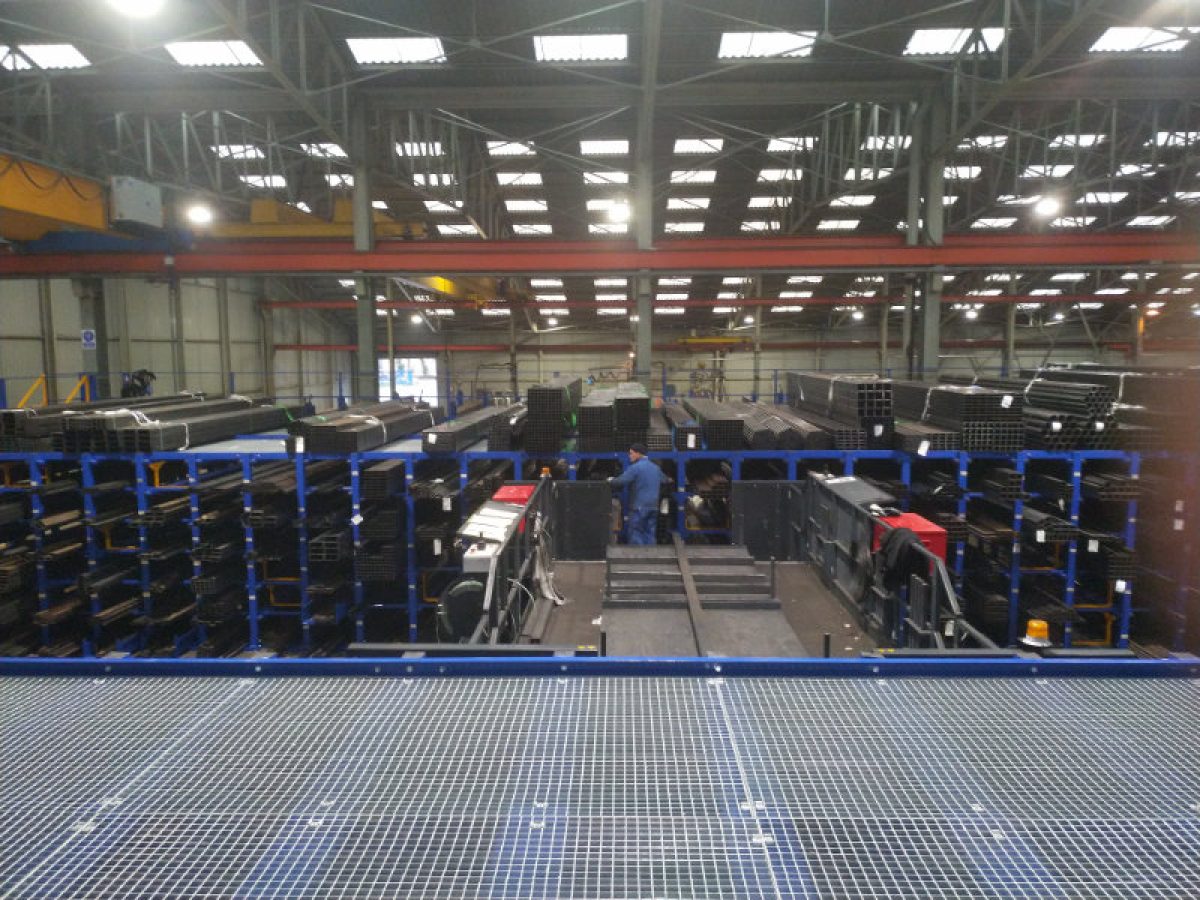

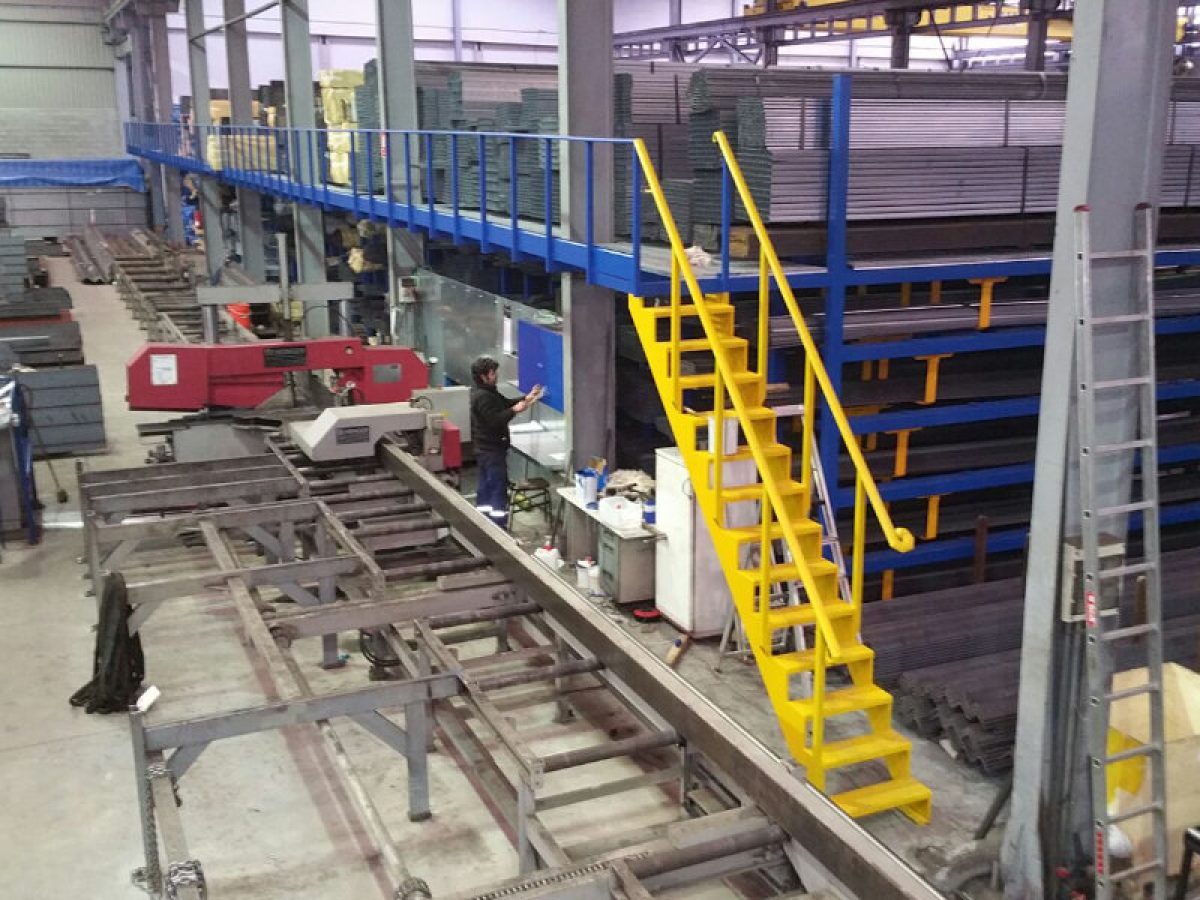

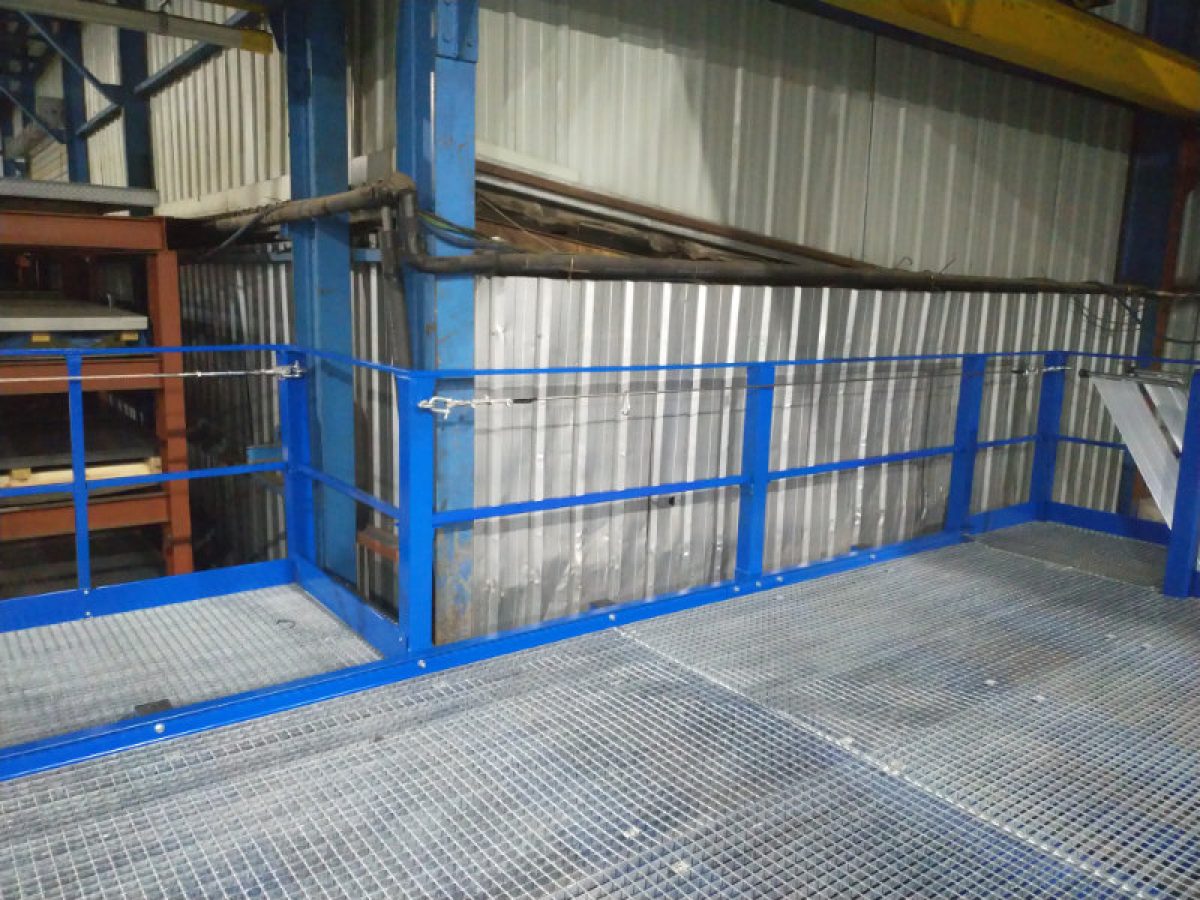

System with walkway in adjacent hall

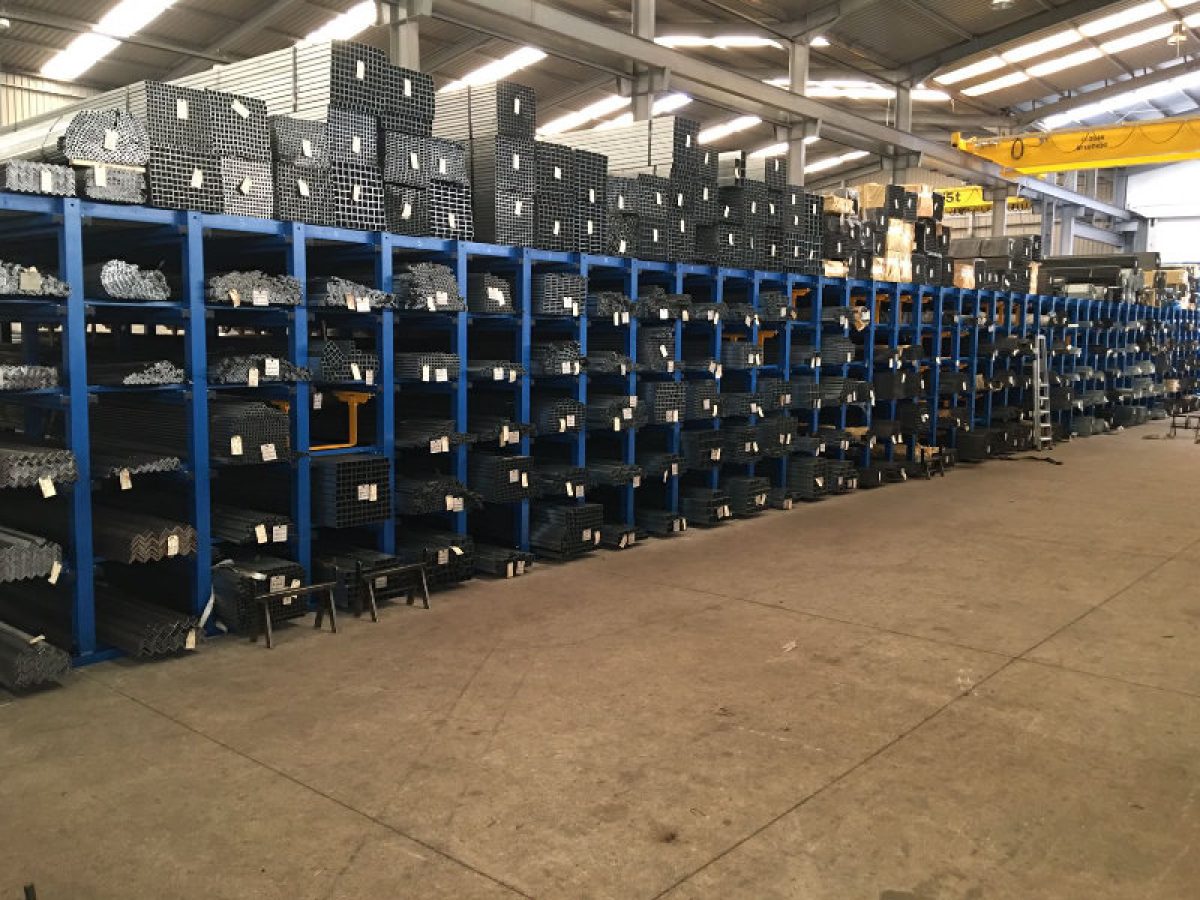

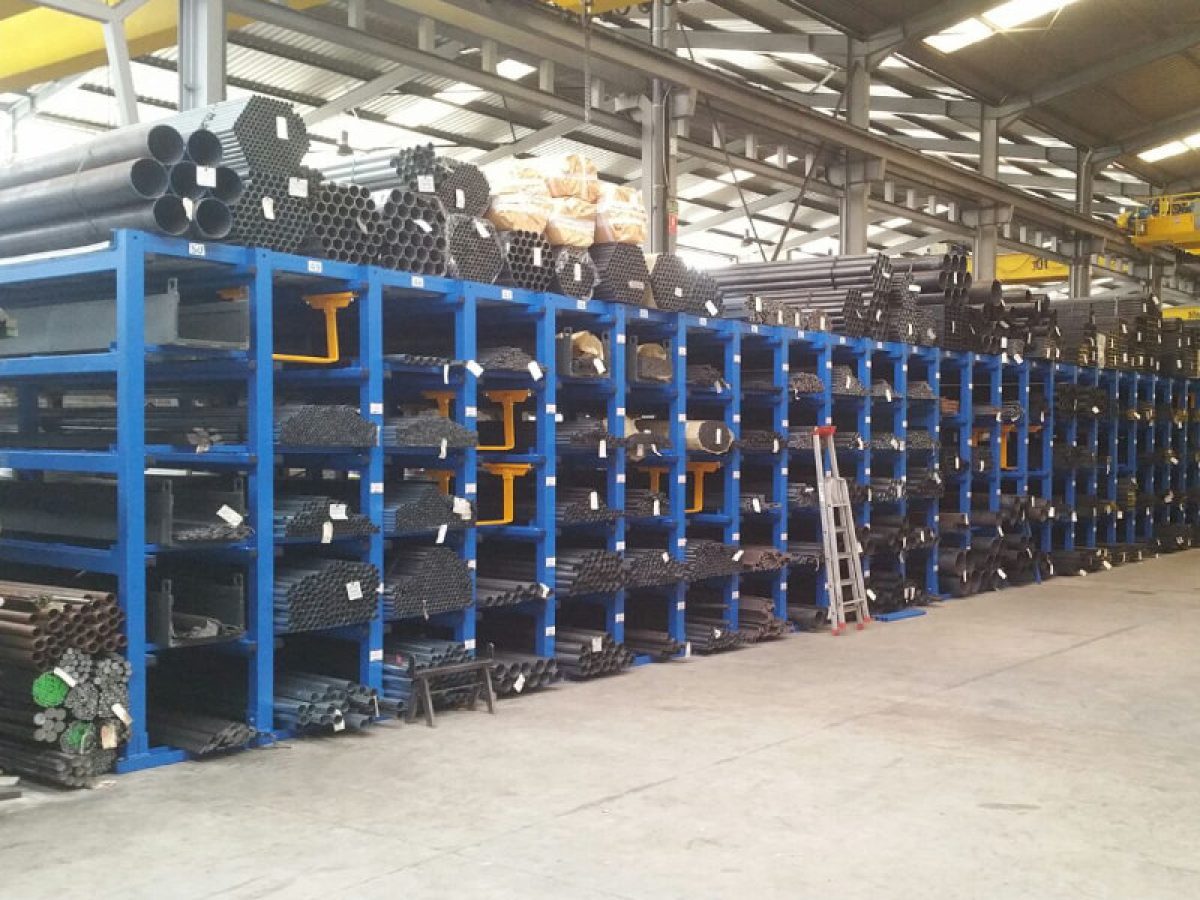

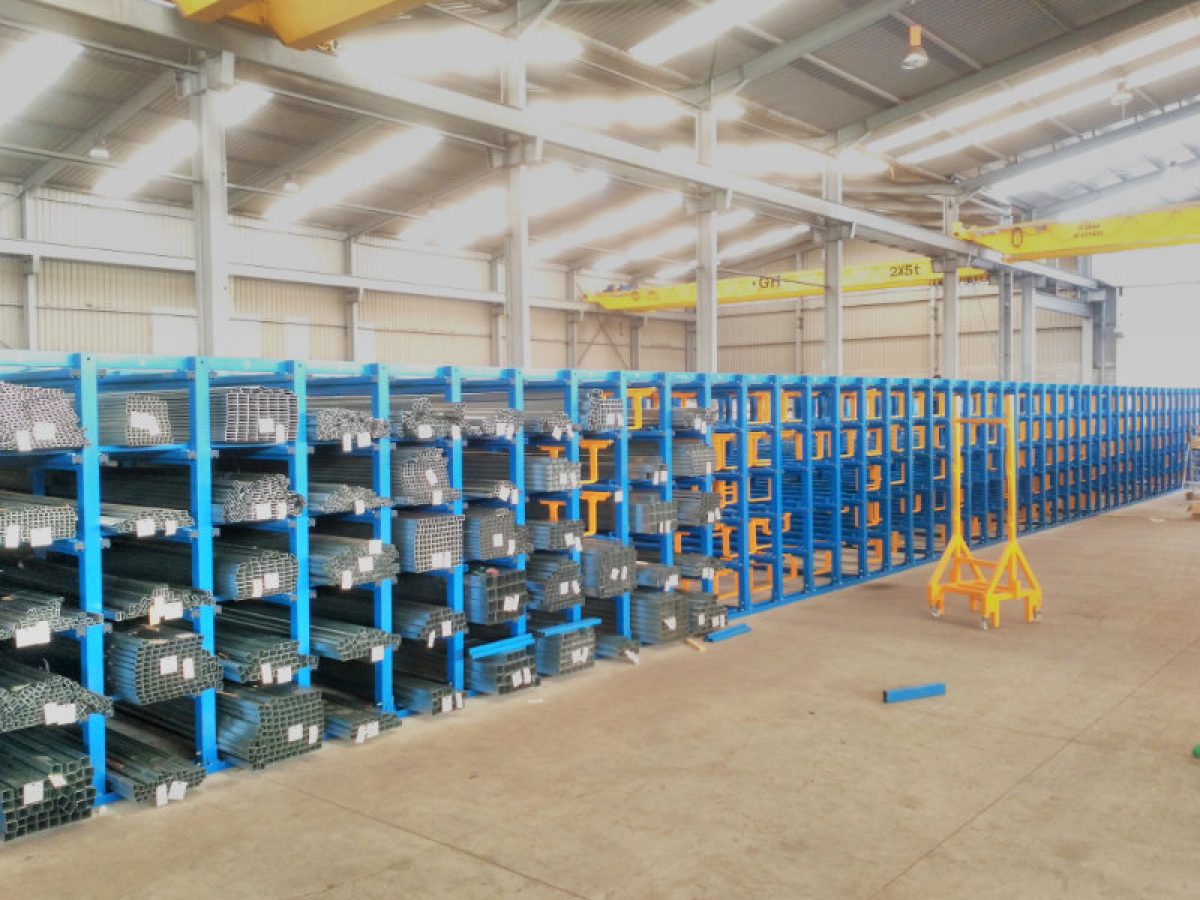

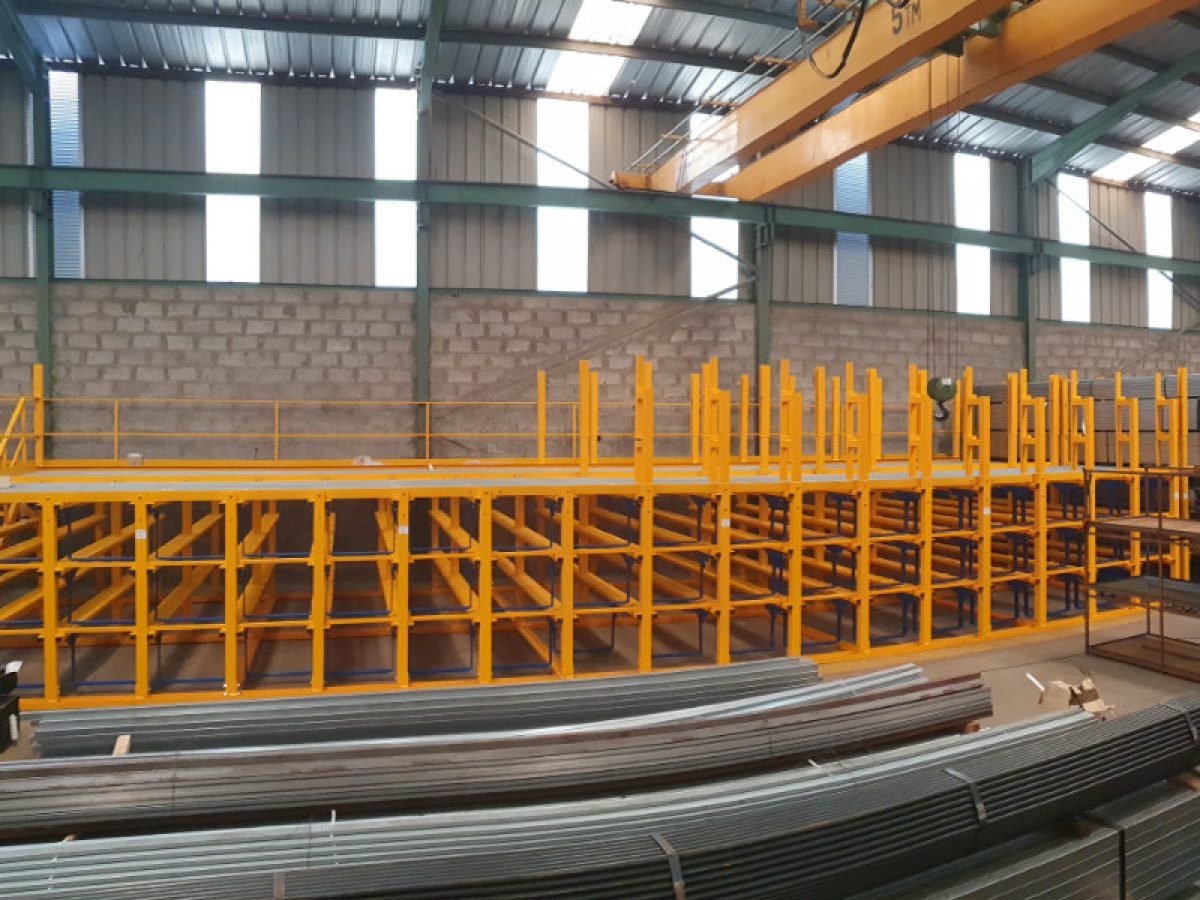

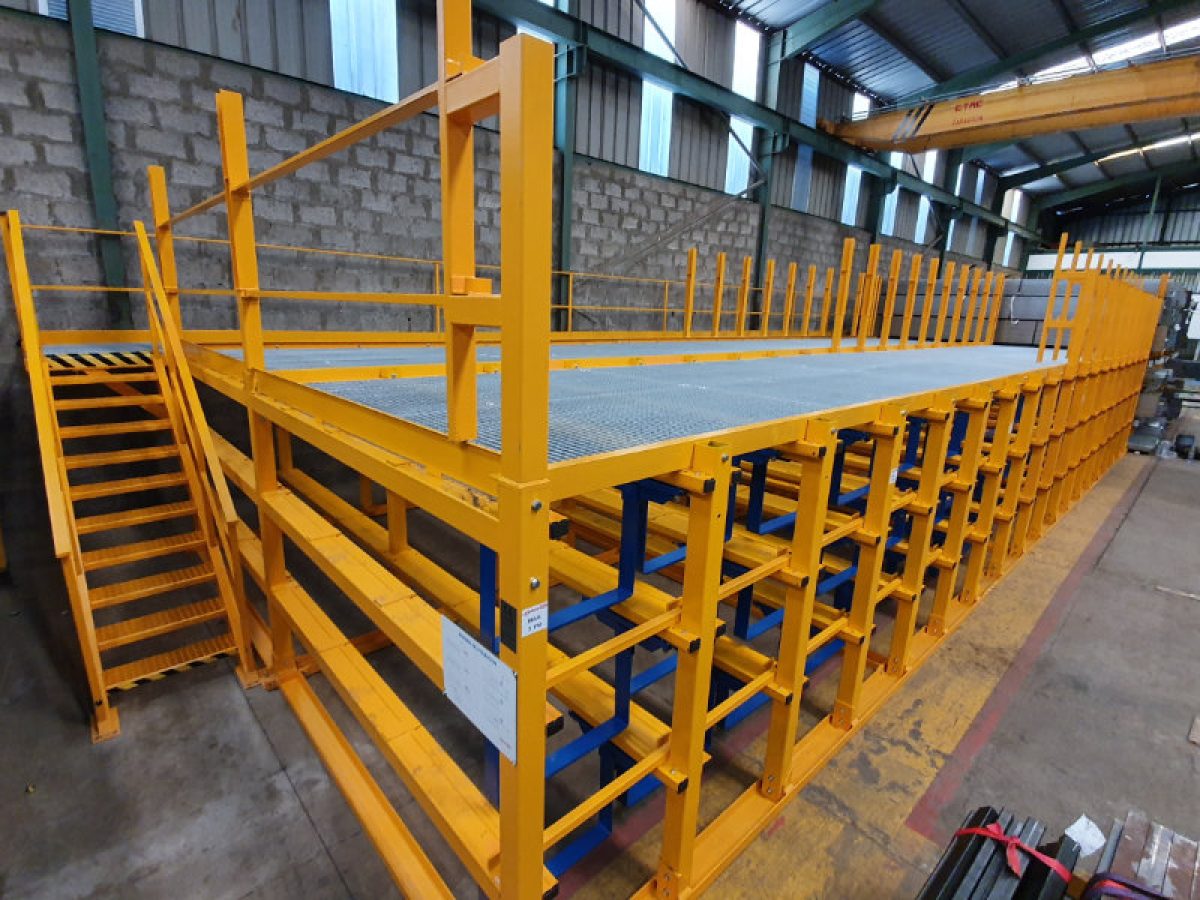

Storage system for long profiles with upper storage.

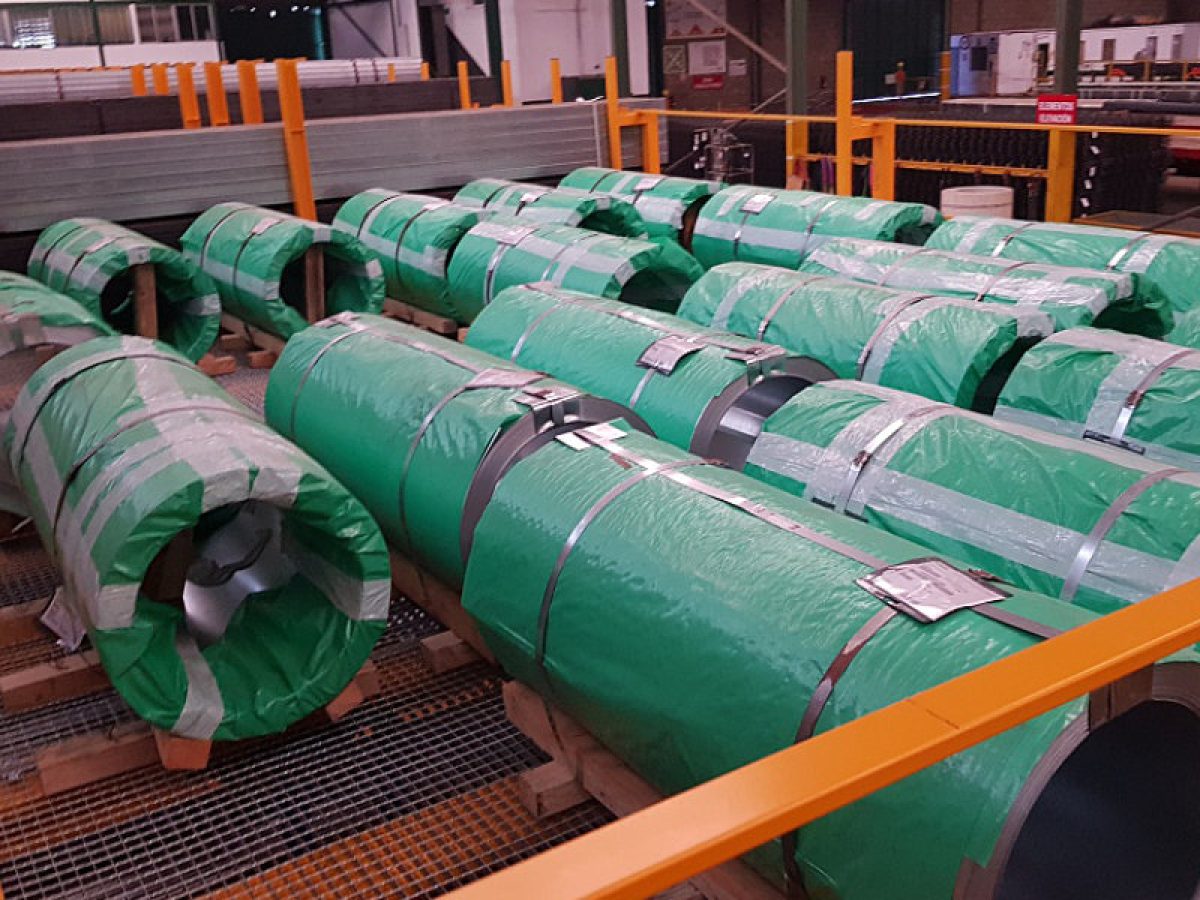

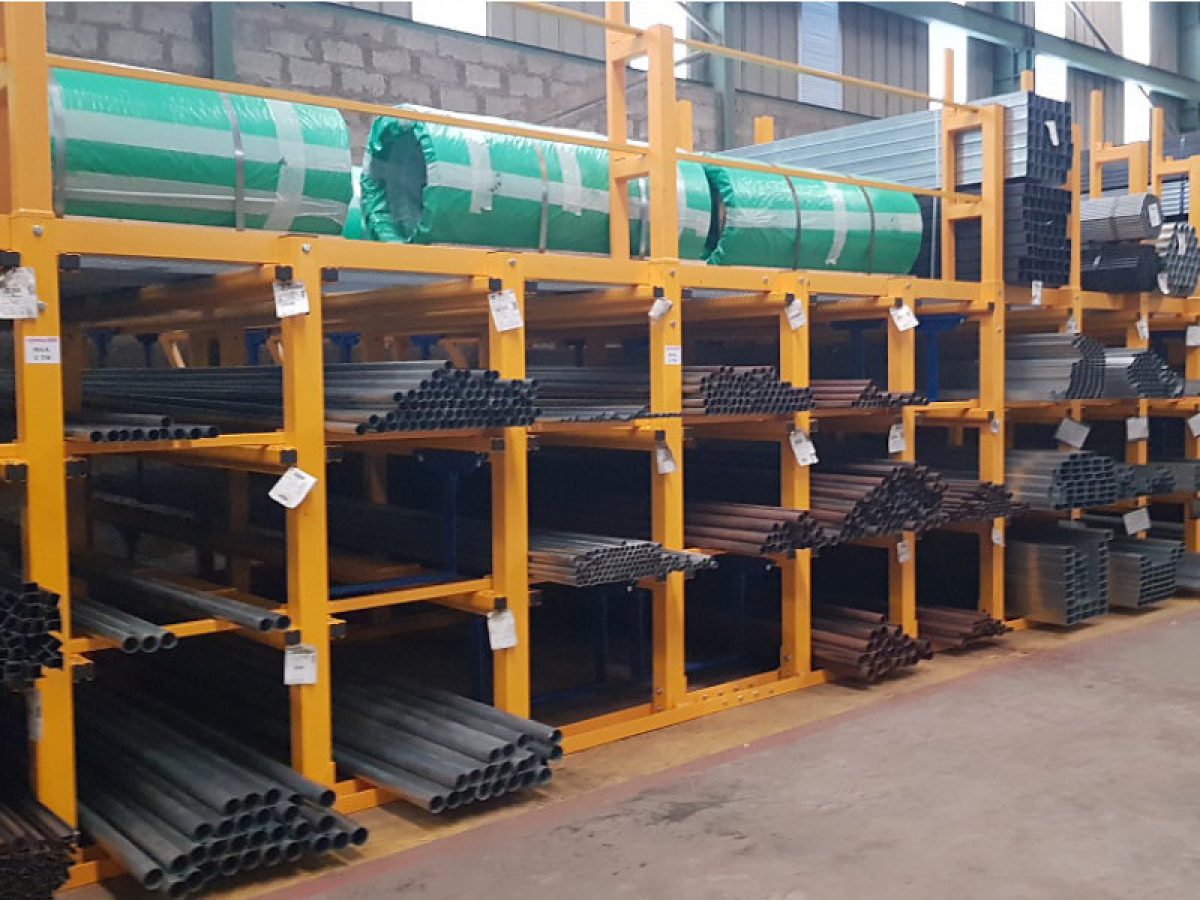

System with material separators & upper warehouse for Steel coils

Storage system for long profiles, upper warehouse with material separating bars and with steel sheet coils.

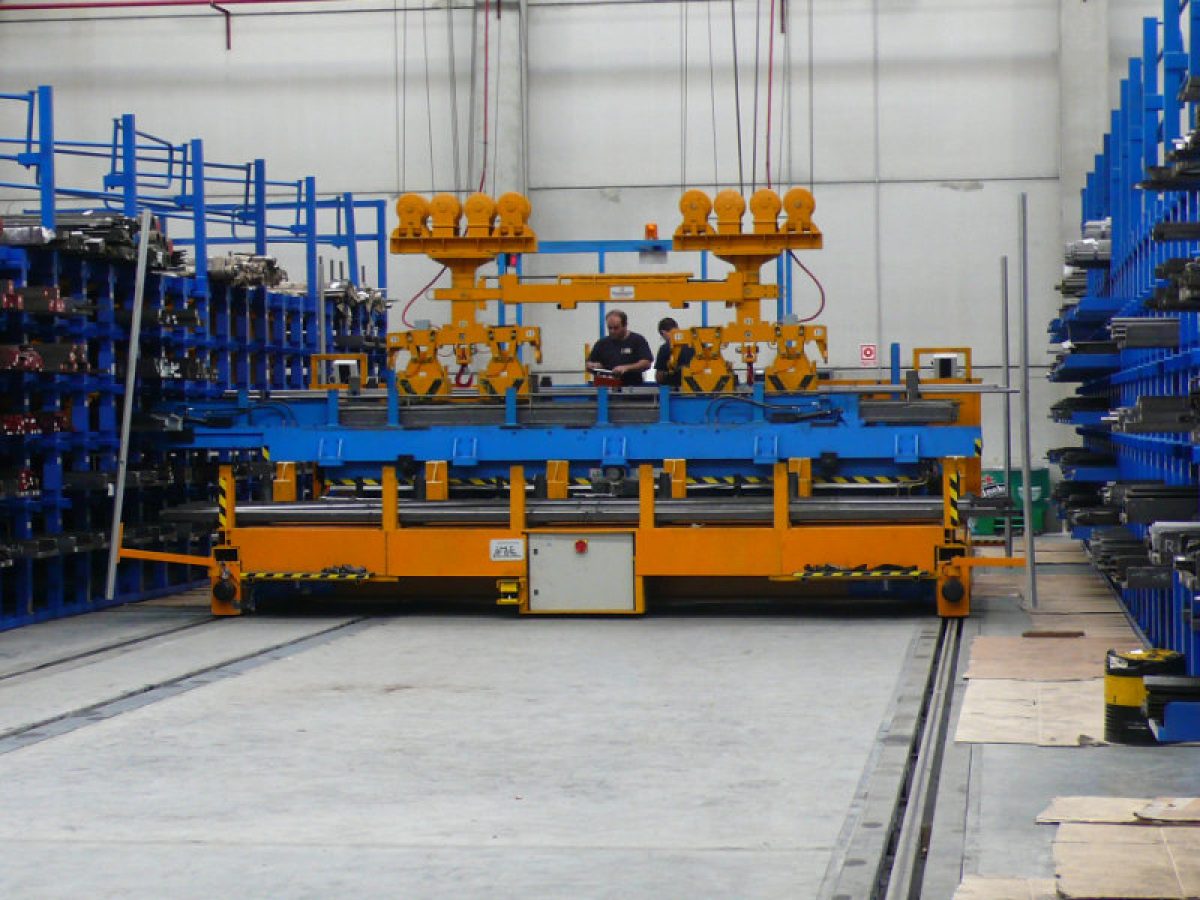

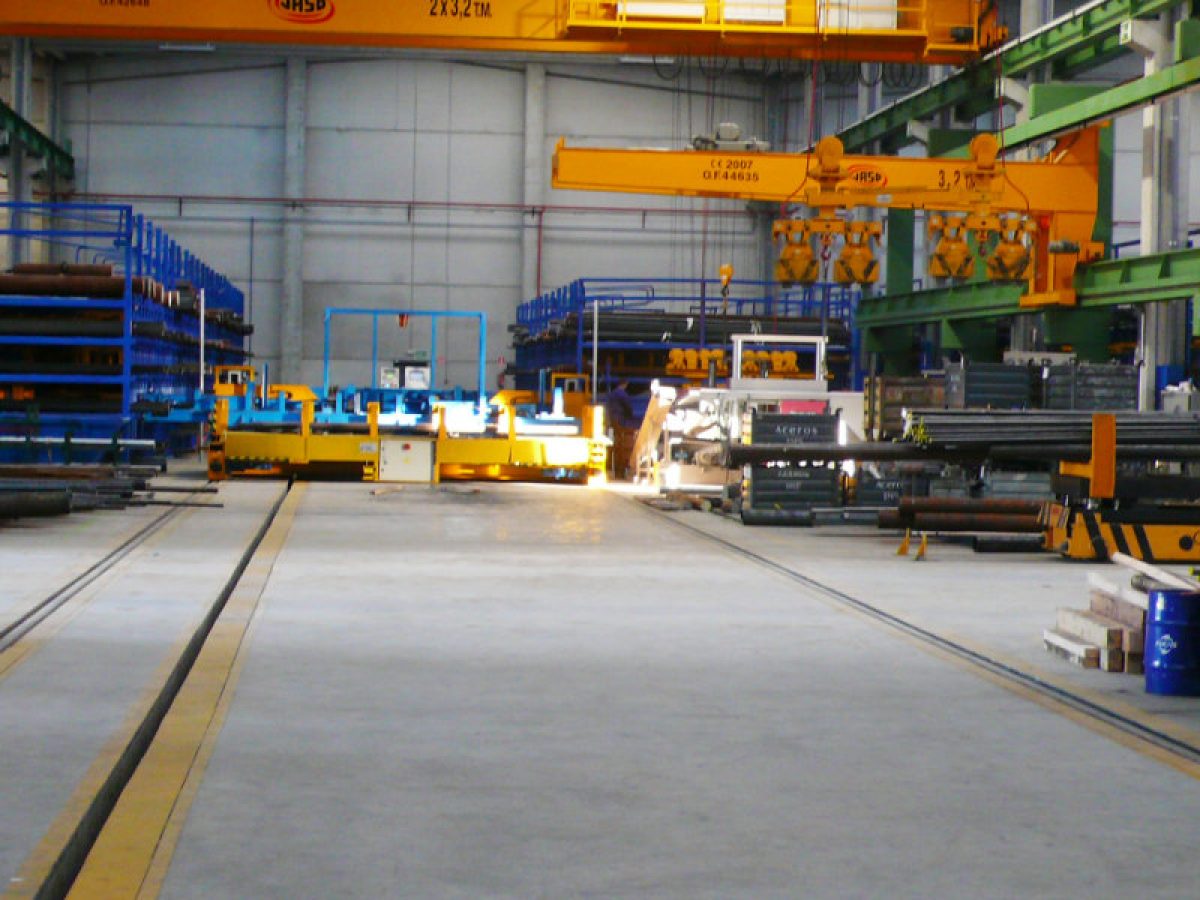

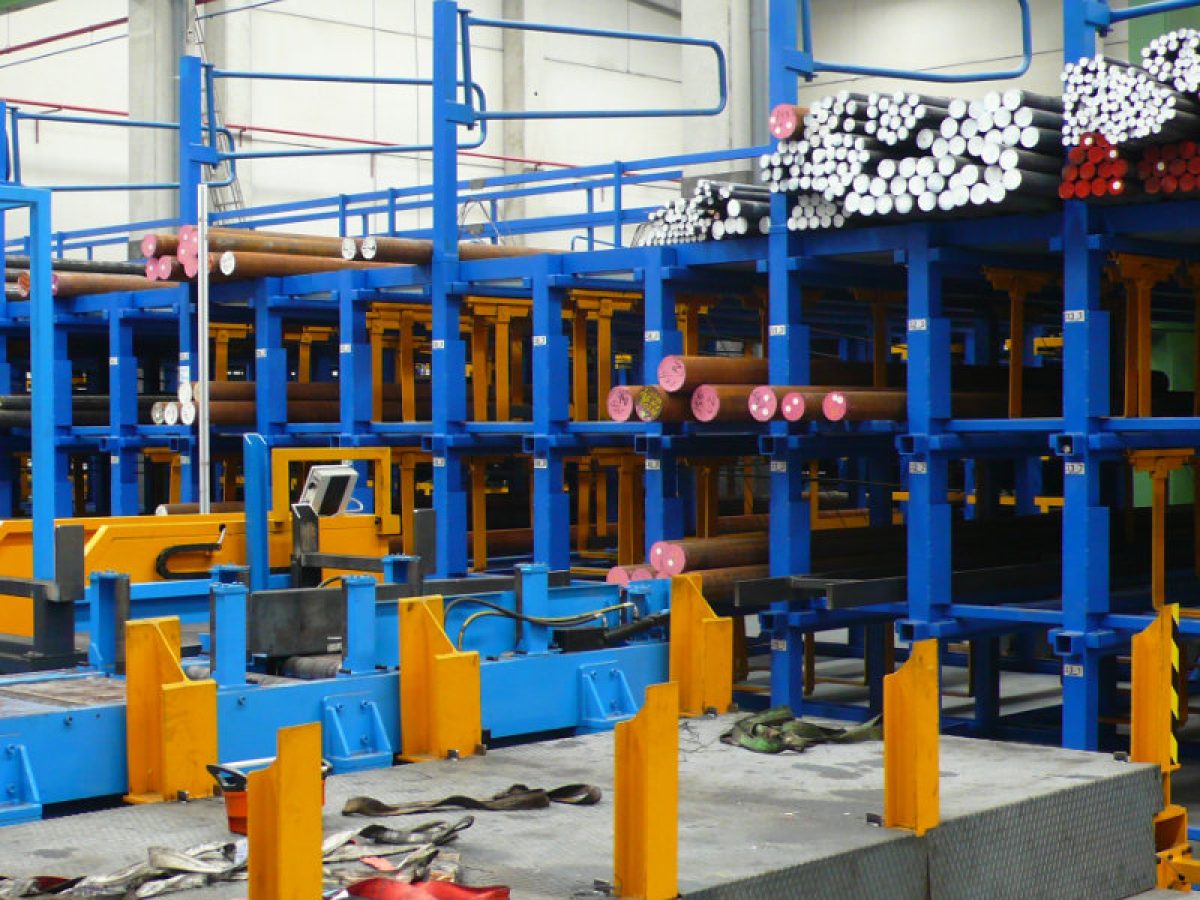

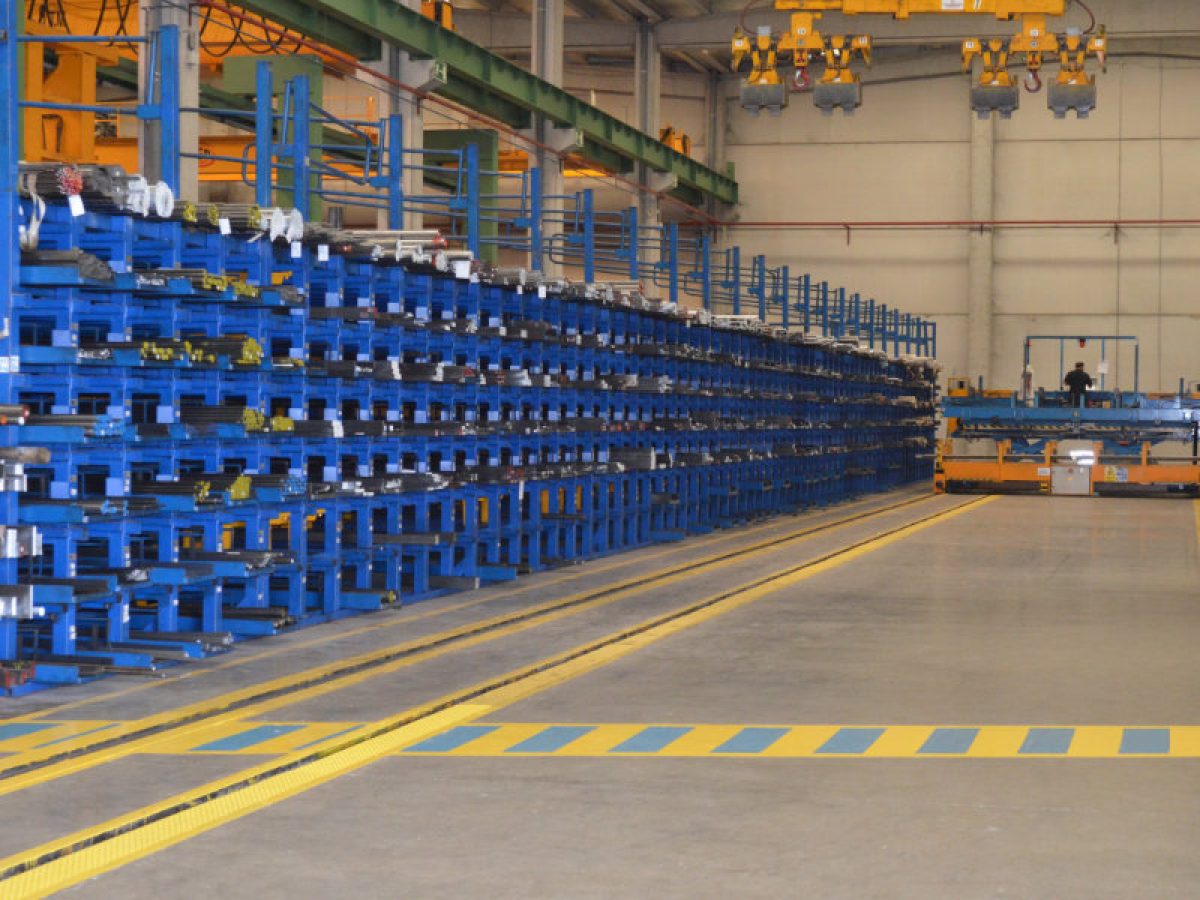

System with automatic extraction platform

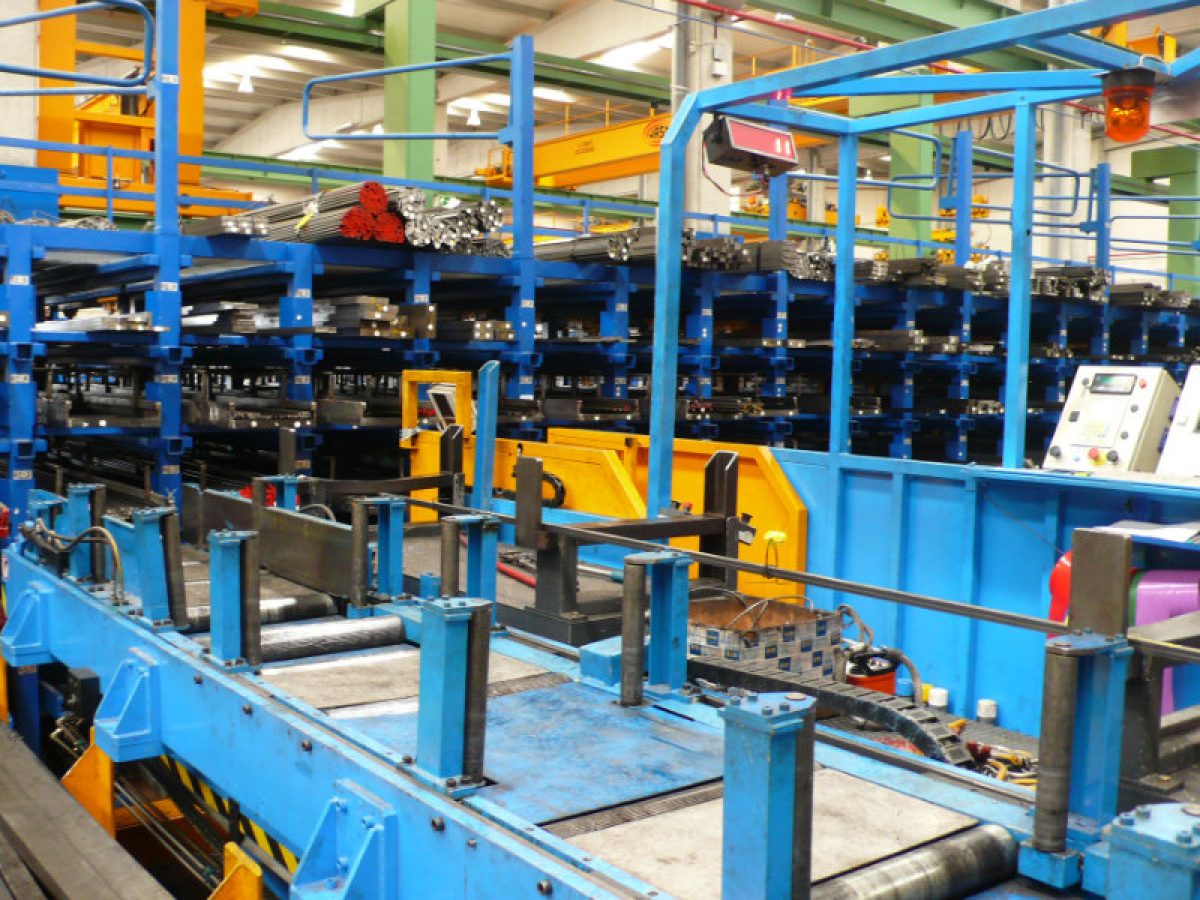

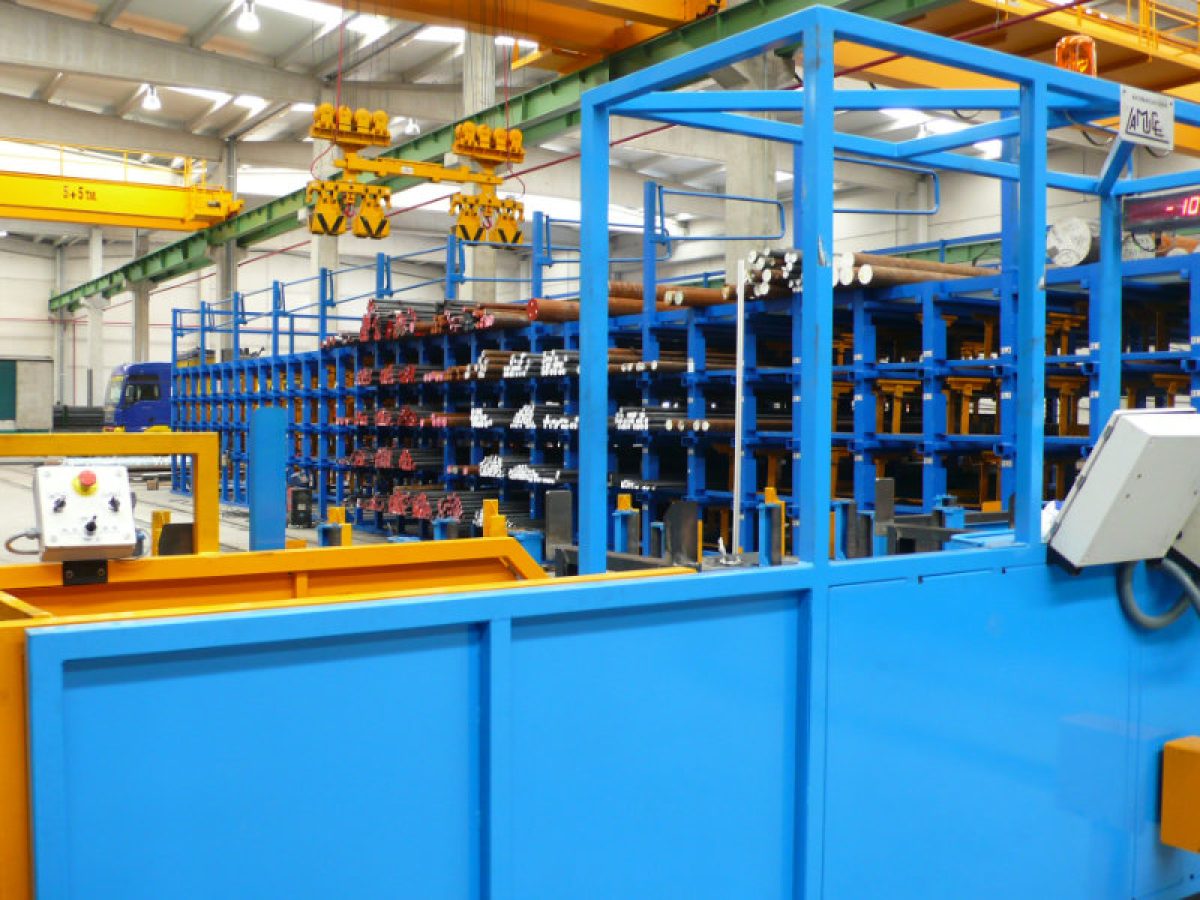

Storage system for calibrated bars and special steels (3 Ton and 5 Ton) with hydraulic platform with automatic positioning and extraction.

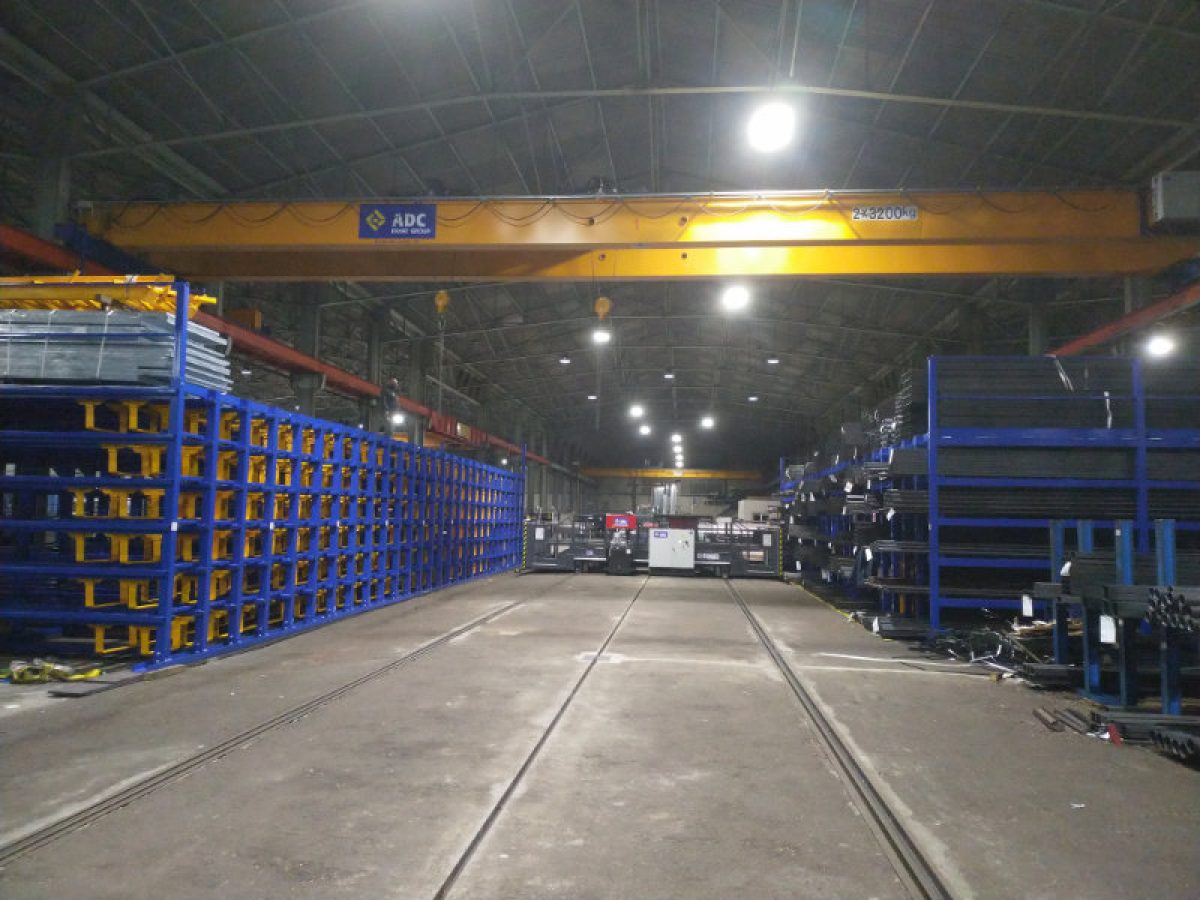

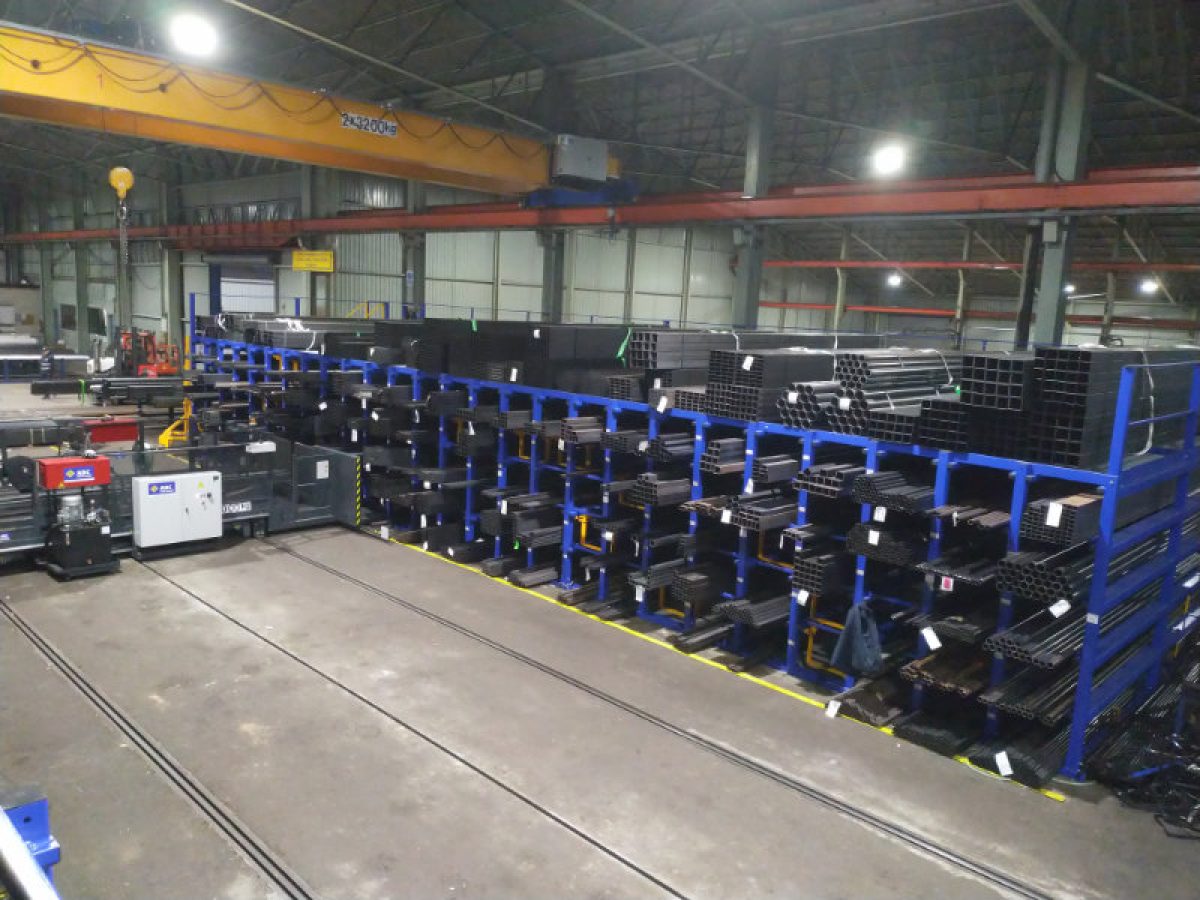

System with hydraulic platform

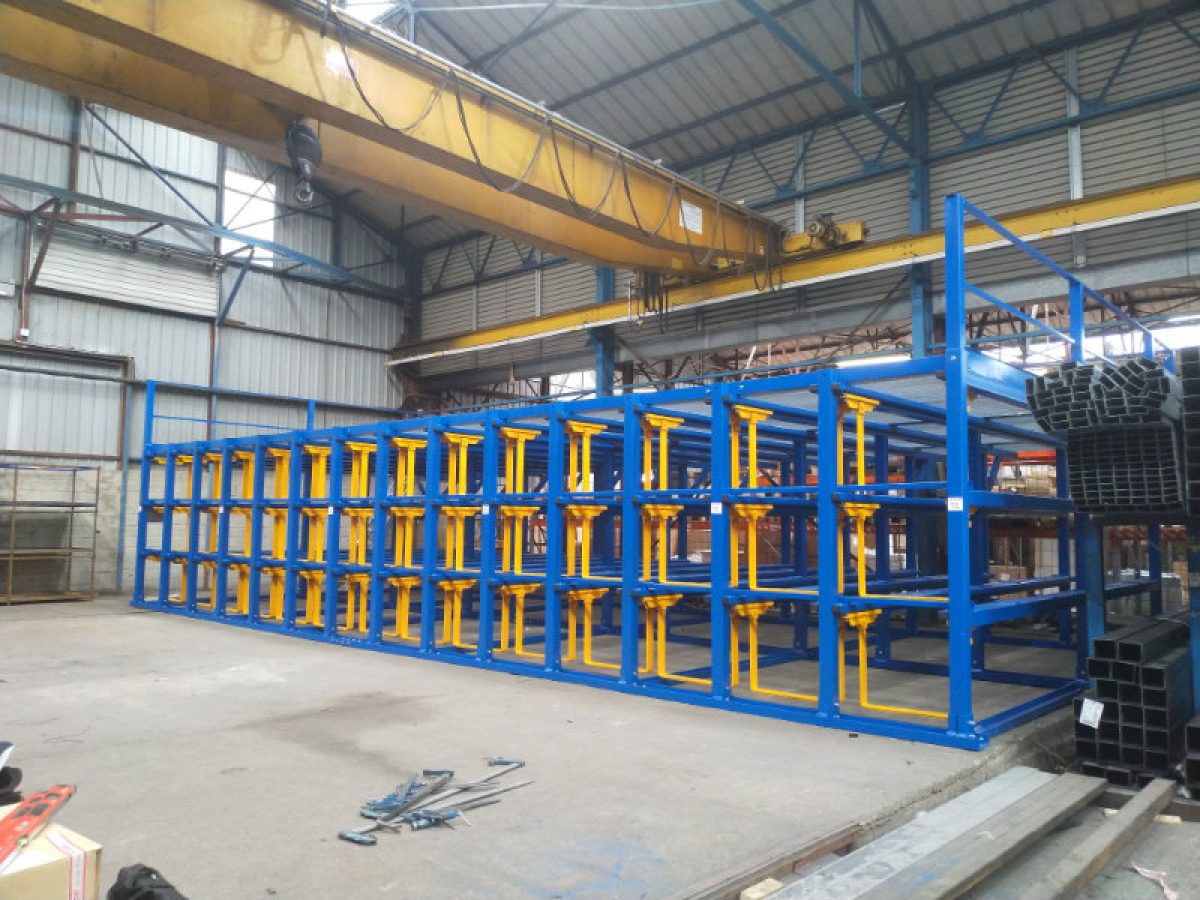

Storage system for long profiles for steel (3 Ton and 5 Ton) with hydraulic platform.

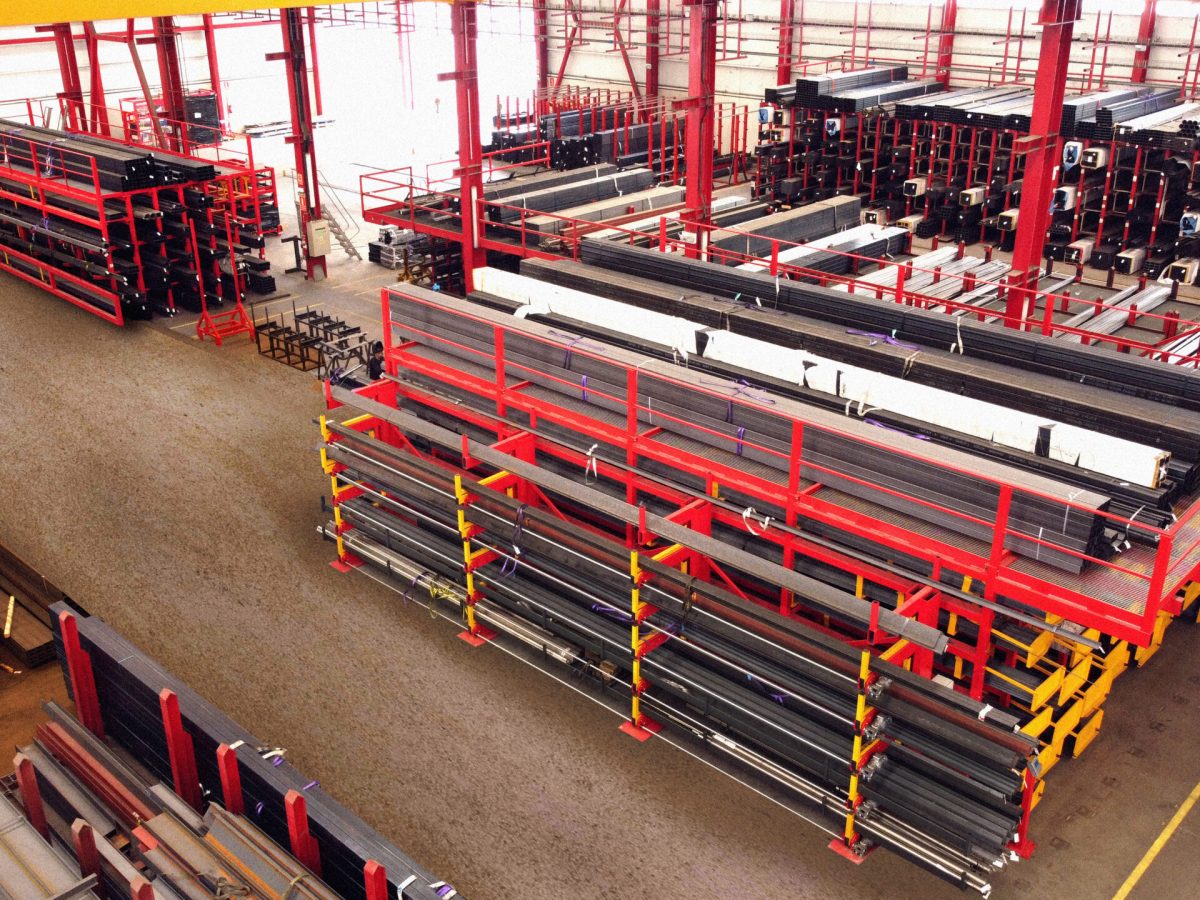

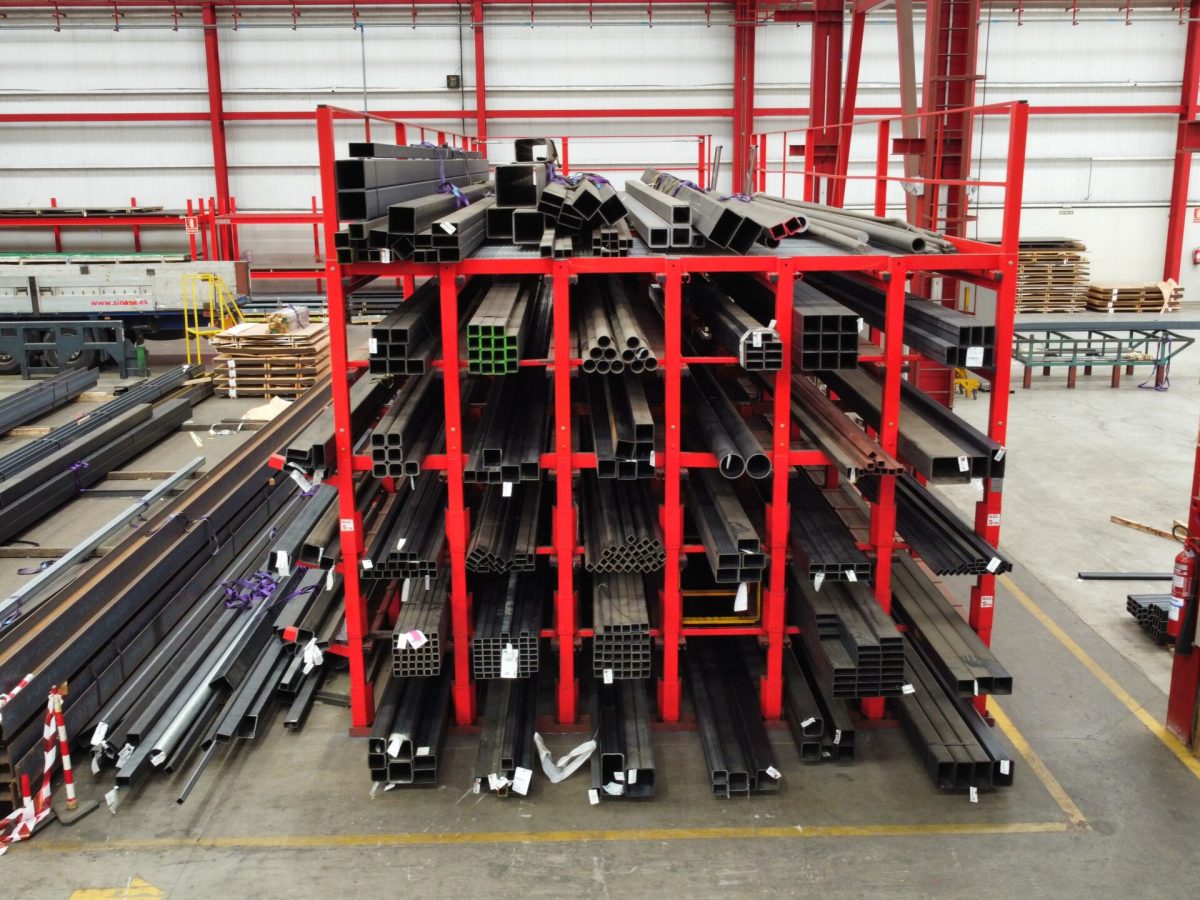

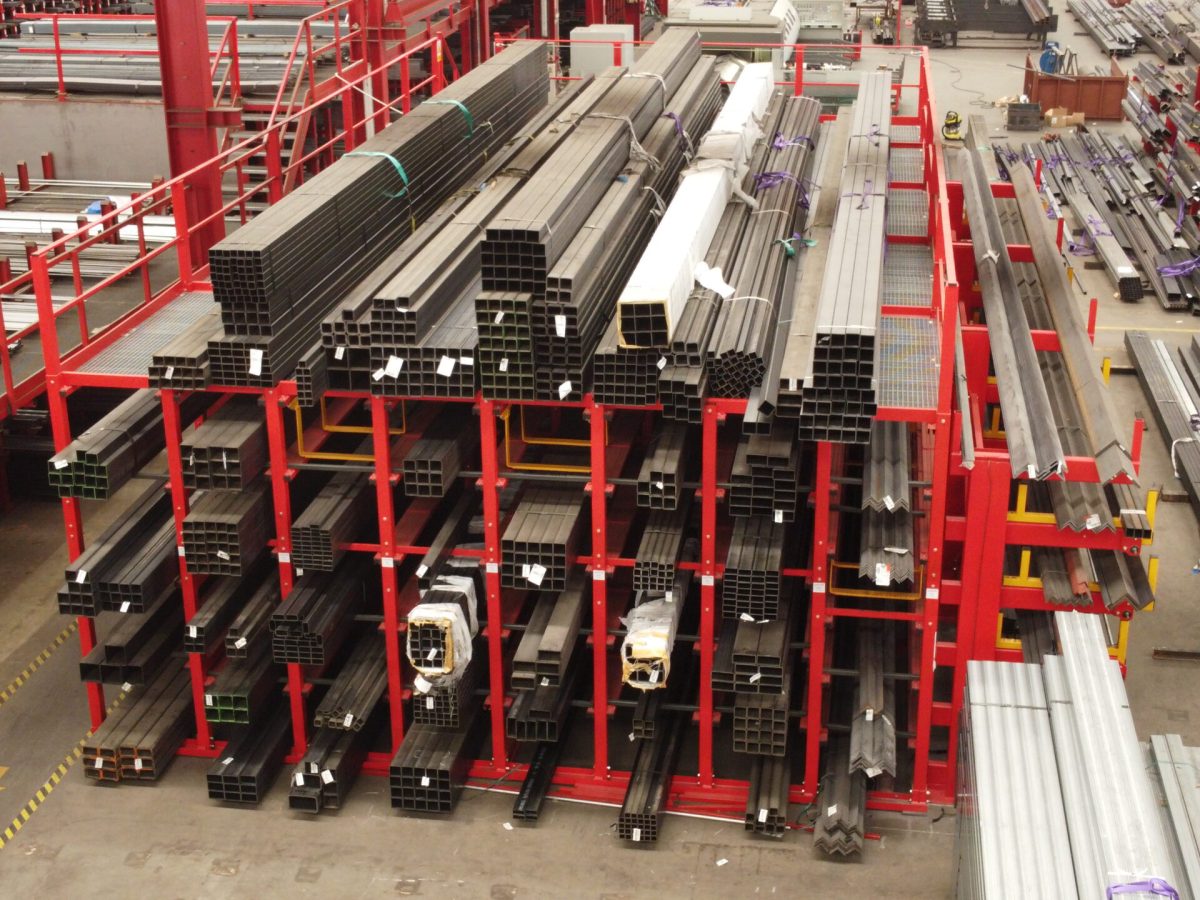

FACING SYSTEMS – MATERIALS AT 12 METERS IN LENGHT

Project where the facing systems, a double storage system for long profiles of 12 meters in length, are placed opposite each other. Both storage systems feature an upper storage area.
